| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Current (Rated Load) | |
| Input Voltage (Nominal) | |
| Internal Power Dissipation (Max) | |
| Lead Spacing | |
| Lead Style | |
| Lead Temperature (Soldering) | |
| Length | |
| Mounting Type | |
| Number of Leads | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Min Load) | |
| Power (Watts) | |
| Short circuit protection | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

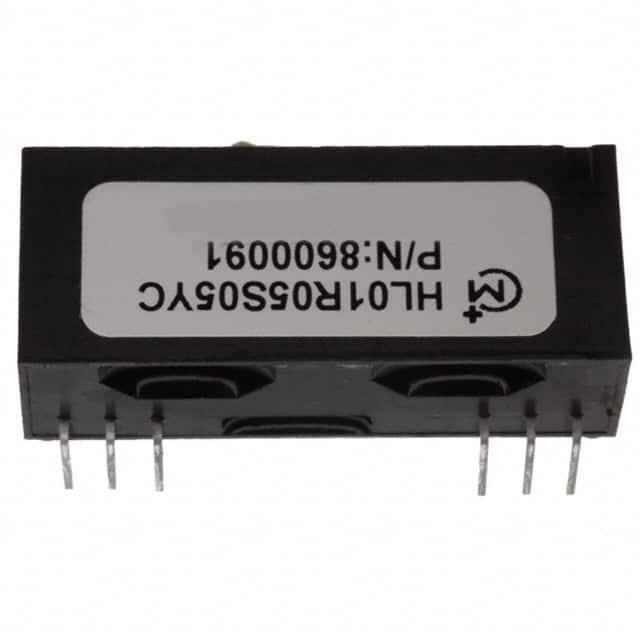

The Murata HL01R05S05YC is a 1W isolated DC-DC converter module from the HL01RYC series. It features a nominal input voltage of 5V and delivers a single regulated output of 5V at up to 200mA. The converter uses a 125kHz push-pull oscillator topology and achieves 58% typical efficiency at nominal input and rated output at 25°C.
Internal input and output filtering reduces noise and beat-frequency oscillator problems. The module is built with surface mount components and all surface mount construction, which improves reliability and reduces parts count. The non-conductive case includes built-in standoffs for PCB mounting.
The HL01R05S05YC comes in a 24-DIP module package with 12 leads and through-hole mounting. Its dimensions are 32.8mm length, 13.5mm width, and 9.7mm height. The operating temperature range spans -40°C to 85°C, making it suitable for commercial IT equipment applications.
| Qty | Low | High |
|---|---|---|
| 15+ | $10.18 | $10.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 5V.
The output voltage is 5V and the rated output current is 200mA.
24-DIP Module, 12 Leads, through-hole mounting.
-40°C to 85°C.
Yes, it is RoHS3 Compliant as stated in the datasheet.
58% typical at Ta=25°C, nominal input, rated output.
