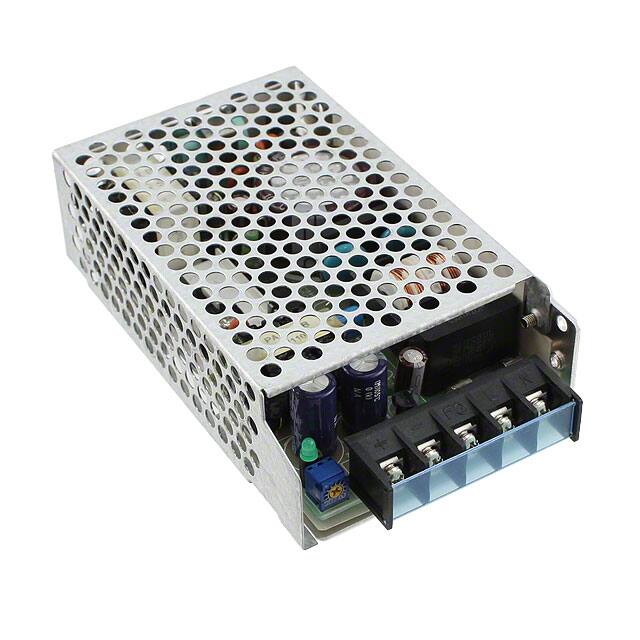

The TDK Corporation HK50A-5/A is an enclosed AC/DC converter designed for reliable power conversion. It delivers 50W of power with a maximum output current of 10A.
Key electrical specifications include a 50W power rating and an output current of 10A. The unit offers adjustable output and is capable of DC input. It provides 3kV of voltage isolation, crucial for safety in many applications. The operating temperature range is from 0°C to 60°C, with derating applied at higher temperatures.
Mechanically, this converter is designed for chassis mounting, facilitating integration into larger systems. Its dimensions are 119.1mm in length, 35.1mm in width, and 71.9mm in height. The efficiency is rated at 79%.
Compliance certifications include CE and cURus, indicating adherence to safety and performance standards. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1, signifying unlimited shelf life under standard conditions. This converter is suitable for ITE (Commercial) applications.
5V DC.
10 A.
50 W.
79%.
3 kV.
0°C to 60°C with derating.
Chassis Mount.
