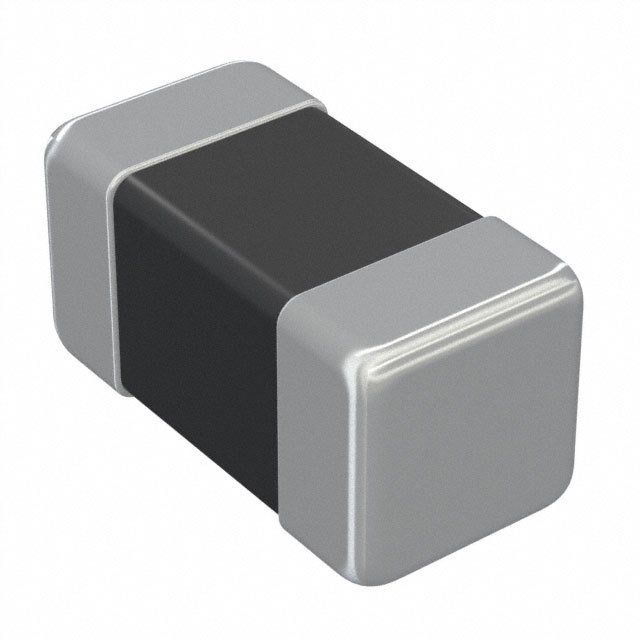

HK100515NJ-T The Taiyo Yuden HK100515NJ-T is a multilayer chip inductor designed for high-frequency applications. It offers 15nH inductance and a 320mA current rating.
Mfr Part #:

HK100515NJ-T

Available from 3 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
The Taiyo Yuden HK100515NJ-T is a multilayer chip inductor designed for high-frequency applications. It offers 15nH inductance and a 320mA current rating.
✓ Total Stock: 11,853 pcs

HK100515NJ-T Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
8,103 pcs
On Request
8103 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,250 pcs
On Request
2250 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
1,500 pcs
On Request
1500 pcs On Request 1 On Request On Request 0909/1001 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HK100515NJ-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Supplier Device Package
Thickness
Tolerance
Type
Width
View Similar Products (0)

HK100515NJ-T Description

Short technical summary and product information.

The Taiyo Yuden HK100515NJ-T is a multilayer chip inductor from the HK series, specifically designed for high-frequency applications above 100MHz. It features excellent Q and SRF characteristics due to its construction with advanced ceramics and low-resistivity silver internal conductors.



This inductor has an inductance value of 15 nH with a tolerance of ±5%. It can handle a rated current of up to 0.32A at temperatures between -55 to 85℃ and has a maximum DC resistance of 0.46 Ω. The operating temperature range is -55 to +125 ℃.



The component comes in a compact 0402 (1005 Metric) surface mount package with dimensions of 1.0mm L x 0.5mm W x 0.55mm H. Its multilayer block structure ensures high reliability and productivity.



Key applications include portable telephones, PHS, W-LAN, miscellaneous high-frequency circuits, and EMI countermeasures in high-frequency circuits.

HK100515NJ-T Quick Information

Product Type: Multilayer Chip Inductor
Series: HK series
Canonical Name: Taiyo Yuden HK100515NJ-T Multilayer Chip Inductor
Subcategory: Multilayer Chip Inductor

HK100515NJ-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HK100515NJ-T Features

  • Multilayer chip inductor for high frequencies.
  • 15nH inductance with ±5% tolerance.
  • Rated for 320mA maximum current.
  • Low DC resistance of 0.46 Ohm maximum.
  • Compact 0402 (1005 Metric) SMD package.

HK100515NJ-T Applications

  • Used in portable telephones and PHS.
  • Suitable for W-LAN applications.
  • Ideal for miscellaneous high-frequency circuits.
  • Effective for EMI countermeasures.

HK100515NJ-T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the HK100515NJ-T inductor?

The inductance is 15 nH with a tolerance of ±5%.

What is the maximum rated current for the HK100515NJ-T?

The maximum rated current is 320 mA.

What is the maximum DC Resistance (DCR) of this inductor?

The maximum DC Resistance is 0.46 Ω.

What is the self-resonant frequency (SRF) of the HK100515NJ-T?

The minimum self-resonant frequency is 2.3 GHz.

What package size is the HK100515NJ-T inductor available in?

It is available in the 0402 (1005 Metric) package size.
