| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Frequency | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Voltage |

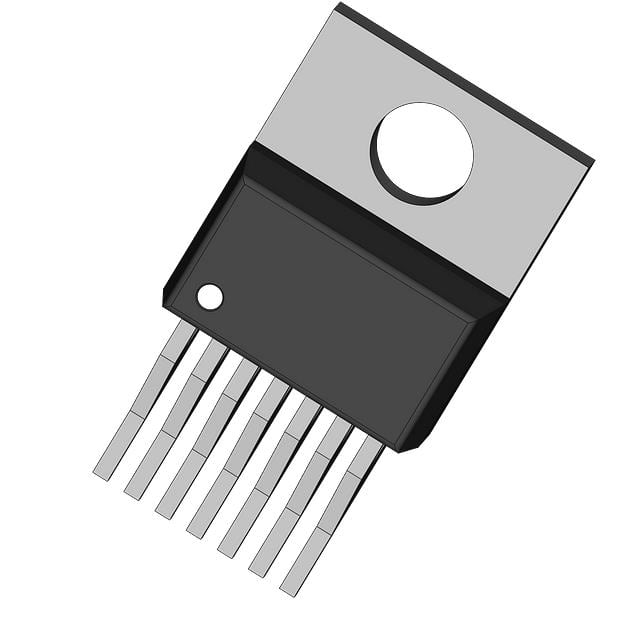

The HIP5011IS from Intersil is an HB Based Peripheral Driver designed for various electronic applications. It operates with a supply voltage ranging from 9.6V to 14.4V, providing a peak output current of 17A. The device is suitable for a wide operating temperature range, from -40°C to 85°C.
This component is housed in a TO-263-8, D²Pak (7 Leads + Tab), TO-263CA package and utilizes surface mount technology for integration into circuit boards. The SynchroFET™ series designation suggests its application in synchronous rectification or similar power management tasks.
Key electrical characteristics include a typical rise/fall time of 20ns and an input frequency of 2MHz. The driver configuration is Half-Bridge, utilizing N-Channel MOSFETs. The RoHS status is listed as RoHS incompatible, and the Moisture Sensitivity Level (MSL) is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9.6V to 14.4V.
17A peak.
2MHz.
20ns typical.
-40°C to 85°C.
TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
Surface Mount.
