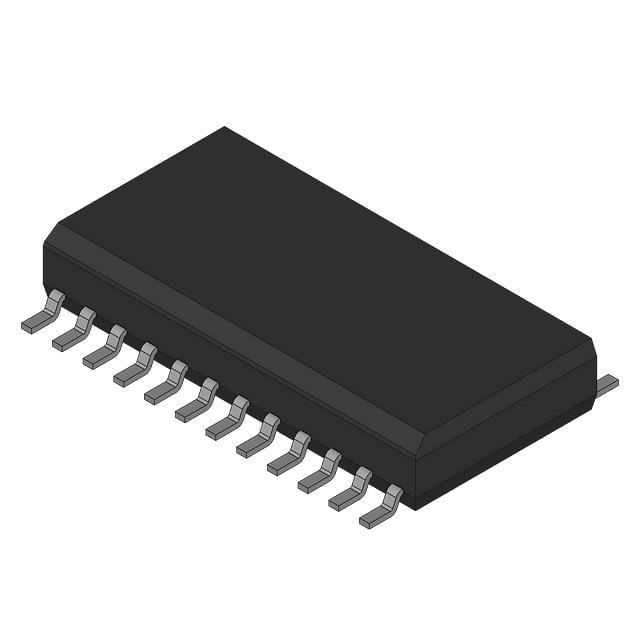

HIP4086AB The Intersil HIP4086AB is a Half Bridge Driver IC designed for applications like DC motors. It operates within a 7V to 15V range and comes in a 24-SOIC package.
Mfr Part #:

HIP4086AB

Available from 1 distributors
Mfr Name: Intersil
Intersil
The Intersil HIP4086AB is a Half Bridge Driver IC designed for applications like DC motors. It operates within a 7V to 15V range and comes in a 24-SOIC package.
✓ Total Stock: 5,245 pcs
$ Price Range: $0.75

HIP4086AB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,245 pcs
On Request
5245 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HIP4086AB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Features
Height
Interface
Length
Load Type
Mounting Style
Mounting Type
Operating Temperature
Output Configuration
SVHC Present
Supplier Device Package
Technology
Voltage
Width
View Similar Products (0)

HIP4086AB Description

Short technical summary and product information.

The Intersil HIP4086AB is a Half Bridge Driver IC, identified by its part number HIP4086AB. This component is designed for applications requiring efficient power management, particularly in systems involving DC motors and general-purpose driving tasks. It features a robust N-Channel MOSFET technology.



Key electrical characteristics include an operating voltage range of 7V to 15V and an output current capability of 500mA. The device supports a bootstrap circuit for high-side driver operation and offers a PWM interface for control. Its rise time is 40 ns and fall time is 20 ns, enabling fast switching performance.



Packaged in a 24-SOIC (0.295", 7.50mm Width) format, the HIP4086AB is designed for surface mount installation. It operates within a temperature range of -40°C to 150°C (TJ). The component is supplied on a reel, with a factory pack quantity of 1000 units, suitable for automated assembly processes.

HIP4086AB Quick Information

Product Type: Half Bridge Driver IC
Series: Hip4086
Canonical Name: HIP4086AB Half Bridge Driver IC
Subcategory: PMIC - Power Management ICs

HIP4086AB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HIP4086AB Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

HIP4086AB Features

  • Half Bridge Driver IC with N-Channel MOSFET technology.
  • Operates from 7V to 15V supply voltage.
  • Provides 500mA output current capability.
  • Features bootstrap circuit for high-side driving.
  • Surface mountable in a 24-SOIC package.

HIP4086AB Applications

  • Suitable for DC motor applications.
  • Designed for general purpose driving tasks.
  • Enables efficient power management.
  • Supports PWM control interfaces.

HIP4086AB FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the HIP4086AB?

The HIP4086AB operates from 7V to 15V.

What package does the HIP4086AB come in?

The HIP4086AB is available in a SOIC-24 package.

What is the operating temperature range of the HIP4086AB?

The operating temperature range is -40°C to 150°C.

What is the output current capability of the HIP4086AB?

The output current is 500 mA.

What are the rise and fall times of the HIP4086AB?

Rise time is 40 ns and fall time is 20 ns.

What technology is used in the HIP4086AB?

The HIP4086AB uses N-Channel MOSFET Si technology.
