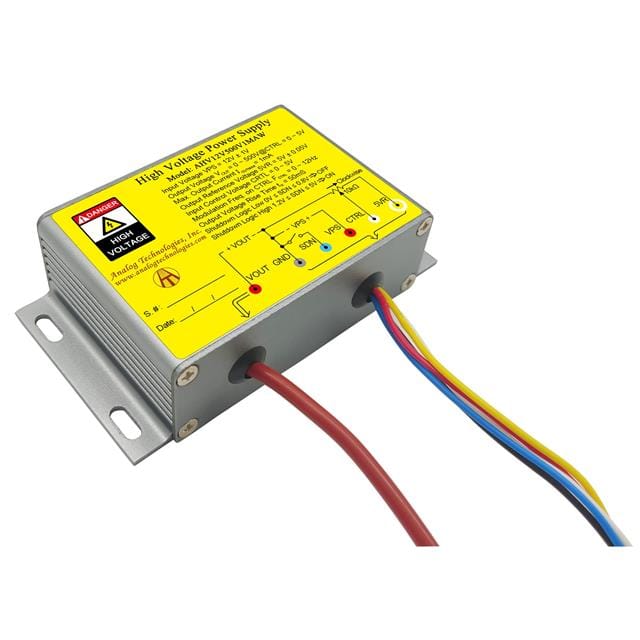

The Analog Technologies AHV12V500V1MAW is an enclosed, chassis mount high voltage power supply module designed for DC-DC conversion. It operates with an input voltage of 12V ± 1V and can deliver an output voltage ranging from 0V to 500V, controlled via a 0-5V input signal. The maximum output current is 1.0mA.
Key electrical specifications include a reference voltage of 5V ± 0.05V and an input current range of 5mA to 60mA. The unit offers electronic shutdown control and boasts zero EMIs due to its metal enclosure, which also provides good heat sinking. Its dimensions are 82.0mm x 55.1mm x 27.9mm.
This power module is suitable for applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be set from 0V to 500V.
The power supply requires an input voltage of 12V ± 1V.
The maximum output current is 1.0mA.
The operating temperature range is -10°C to 55°C.
This power supply is designed for chassis mount.
