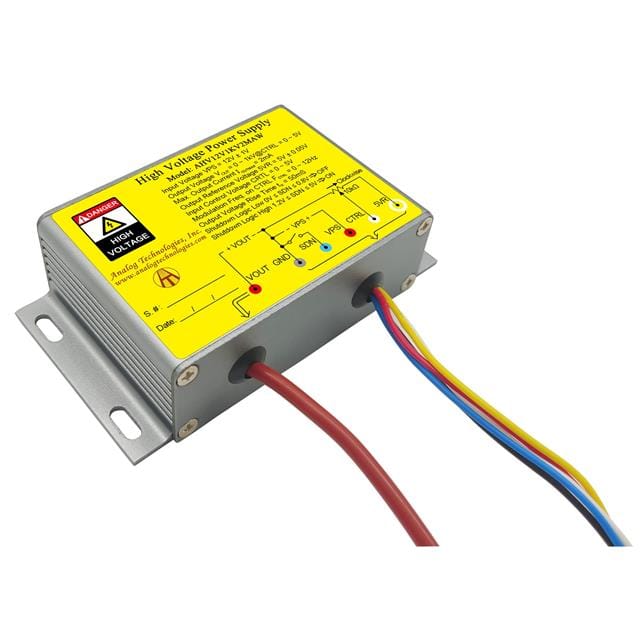

The Analog Technologies AHV12V1KV2MAW is an enclosed, chassis mount high voltage power supply designed for DC-DC conversion from low voltage to high voltage. It operates with an input voltage range of 11V to 13V and provides an adjustable output voltage from 0V to 1kV, controlled via a 0-5V input signal. The maximum output current is 2mA.
Key electrical specifications include an input current range of 50mA to 240mA and a reference voltage of 5V ± 0.05V. The unit features electronic shutdown control and has an efficiency of 70%. Its operating temperature range is -10°C to 55°C.
The physical dimensions are 82.0mm in length, 55.1mm in width, and 27.9mm in height. This power module is suitable for demanding applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V.
The maximum output voltage is 1kV.
The maximum output current is 2mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
This power supply uses chassis mount.
