| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Durability | |
| Features | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| UL Flammability | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Type | |
| Withstanding Voltage |

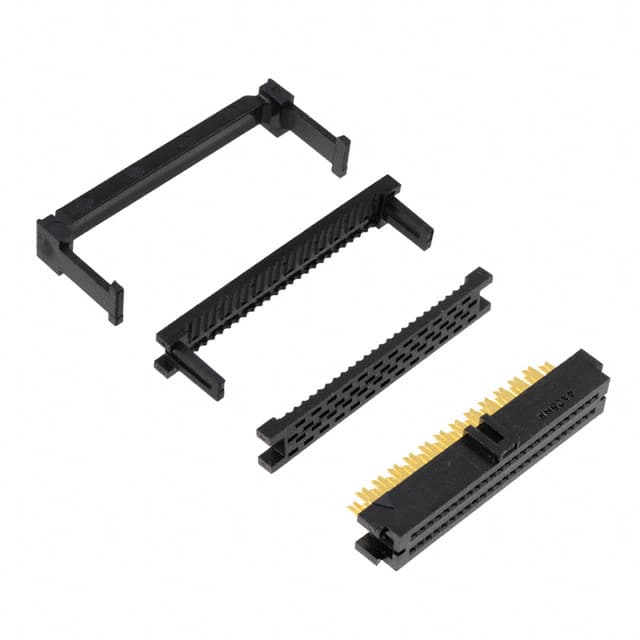

The HIF6-50D-1.27R is a 50 position IDC receptacle connector from Hirose Electric's HIF6 series. It is designed for use with 28 AWG ribbon cable and features a 1.27mm pitch for high density applications. The connector has two rows of female socket contacts with gold plating for reliable electrical performance.
This connector uses insulation displacement contact (IDC) termination for quick and reliable cable assembly without stripping. It is a free hanging (in-line) mount type, making it suitable for cable-to-cable or cable-to-board connections. The black insulator includes a feed through design and integrated strain relief for cable management.
Electrical ratings include 0.5A current and 125V AC voltage, with an operating temperature range of -55°C to +85°C. The connector meets UL94V-0 flammability rating for the insulator material. It is RoHS3 compliant and REACH unaffected.
The HIF6-50D-1.27R is commonly used in internal wiring, ribbon cable assemblies, and other applications requiring a compact, reliable IDC connection.
50 positions in 2 rows.
1.27mm (0.050").
0.5 A per contact.
125 V AC.
Free hanging (in-line) with IDC termination.
-55°C to +85°C.
Gold.
