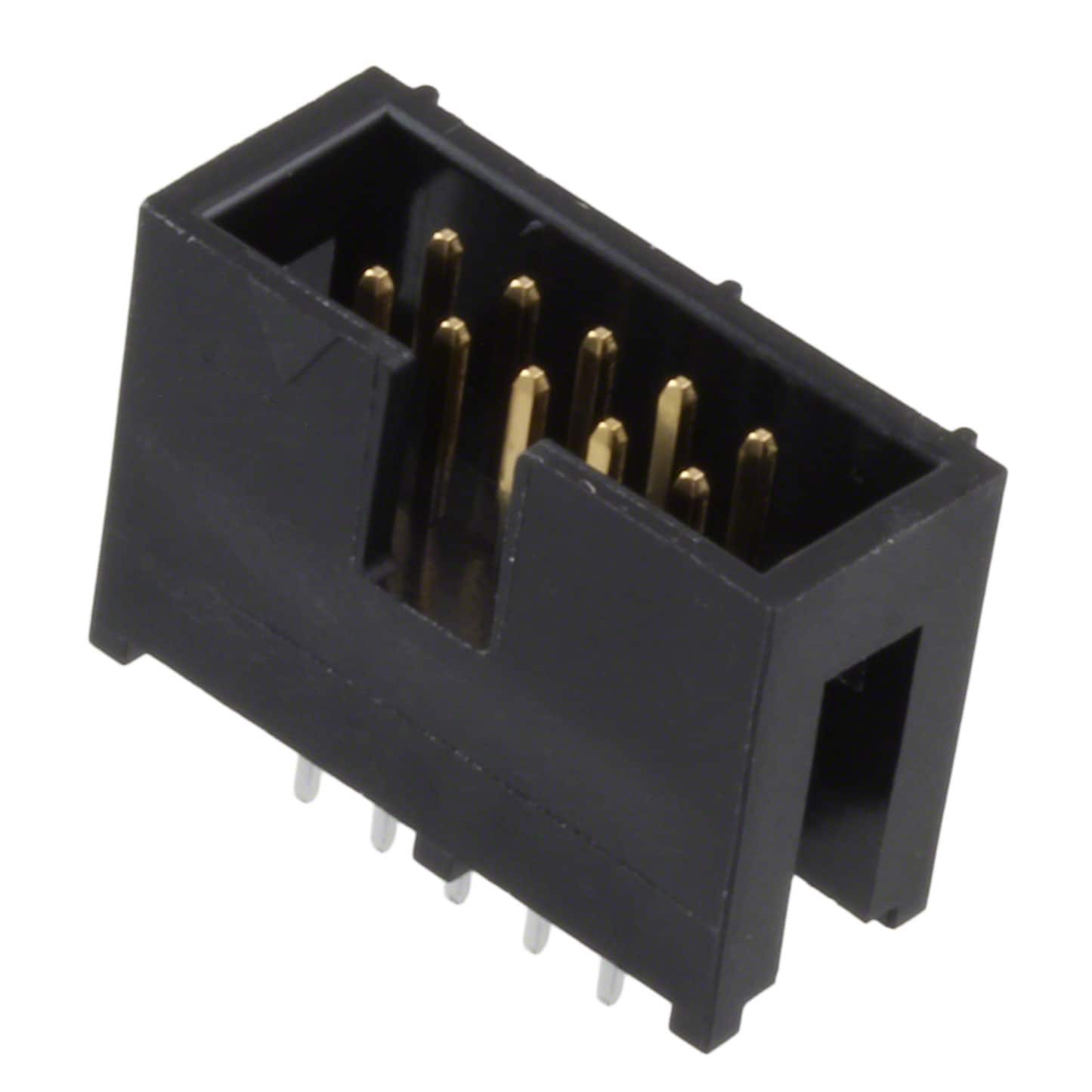

HIF3F-10PA-2.54DSA(71) Hirose HIF3F series header with 10 male pins in 2 rows, 2.54mm pitch. Through-hole mounting with solder termination and latch holder fastening.
Mfr Part #:

HIF3F-10PA-2.54DSA(71)

Available from 1 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose HIF3F series header with 10 male pins in 2 rows, 2.54mm pitch. Through-hole mounting with solder termination and latch holder fastening.
✓ Total Stock: 600 pcs
$ Price Range: $1.68 - $3.09

HIF3F-10PA-2.54DSA(71) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HIF3F-10PA-2.54DSA(71) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

HIF3F-10PA-2.54DSA(71) Description

Short technical summary and product information.

The HIF3F-10PA-2.54DSA(71) is a 10-position, 2-row header from Hirose Electric's HIF3F series. It features a 2.54mm pitch and row spacing, making it compatible with standard ribbon cable connectors. The header is shrouded with four walls and includes a latch holder for secure mating. Contacts are square brass pins with a tin finish (8.00µin), rated for 1A current and 200V voltage. The insulation is black PBT with a UL94 V-0 flammability rating. Operating temperature ranges from -55°C to 85°C. This through-hole component uses solder termination and is designed for board-to-cable/wire applications. A keying slot prevents mis-mating. The overall contact length is 0.622" (15.80mm) with a contact length of 0.236" (6.00mm) and insulation height of 0.547" (13.90mm).

HIF3F-10PA-2.54DSA(71) Quick Information

Product Type: Header, Male Pins
Series: HIF3F
Canonical Name: Hirose HIF3F Series Header, 10 Position, 2.54mm Pitch, Through Hole, Male Pin
Subcategory: Male Pins

HIF3F-10PA-2.54DSA(71) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HIF3F-10PA-2.54DSA(71) Estimated Pricing

Qty Low High
1+ $3.09 $3.09
10+ $2.63 $2.63
100+ $2.24 $2.24
600+ $2.01 $2.01
1,200+ $1.87 $1.87
5,400+ $1.68 $1.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

HIF3F-10PA-2.54DSA(71) Features

  • 10-position, 2-row shrouded header.
  • 2.54mm pitch and row spacing.
  • Latch holder for secure connection.
  • Rated for 1A and 200V operation.
  • Through-hole solder termination.

HIF3F-10PA-2.54DSA(71) Applications

  • Board-to-cable/wire interconnections.
  • Industrial control and automation systems.
  • Consumer electronics and appliances.
  • Signal and low-power distribution.

HIF3F-10PA-2.54DSA(71) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the HIF3F-10PA-2.54DSA(71) have?

10 positions in 2 rows.

What is the pitch of this header?

2.54mm (0.100").

What is the current rating?

1A per contact.

What is the voltage rating?

200V.

What is the mounting type?

Through hole with solder termination.

What fastening type does this header use?

Latch holder.

What is the operating temperature range?

-55°C to 85°C.
