| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
110 pcs
|
110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

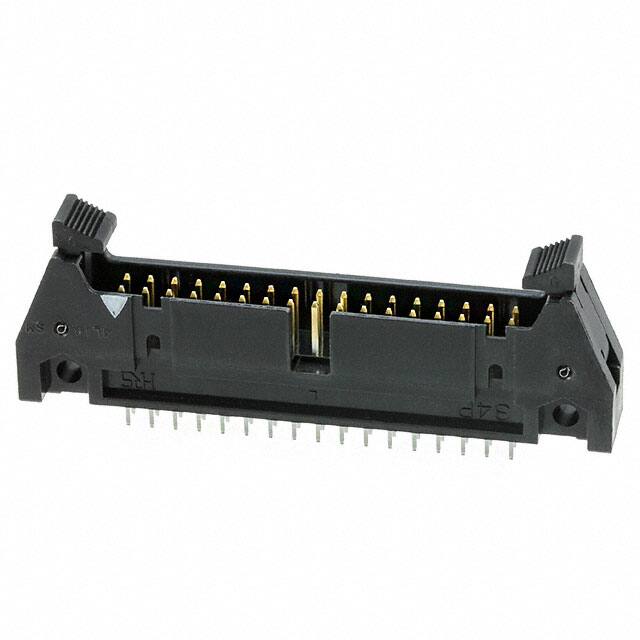

The HIF3BAG-34PA-2.54DSA(71) is a 34-position, 2.54mm pitch shrouded header from Hirose Electric's HIF3B series. It is designed for board-to-cable/wire connections and features a 4-wall shrouded design with latch lock/eject hooks for secure mating. The header has male pins with square brass contacts finished in tin, and is rated for 1A current (IDC) and 200V voltage. It operates over a temperature range of -55°C to 85°C. The insulation is black PBT with UL94 V-0 flammability rating. Mounting is through hole with solder termination. The header includes a keying slot for polarization. Electrical characteristics include insulation resistance of 1000 MΩ min at 500V DC, withstanding voltage of 650V AC, and contact resistance of 15 mΩ max. The HIF3B series is compliant with MIL standard and UL approved. This connector is suitable for applications requiring reliable interconnection in industrial, consumer, and automotive electronics.
34 positions.
2.54mm (0.100").
1A for IDC type; other types rated up to 3A.
200V.
Through hole with solder termination.
-55°C to 85°C.
PBT with UL94 V-0 rating.
