| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

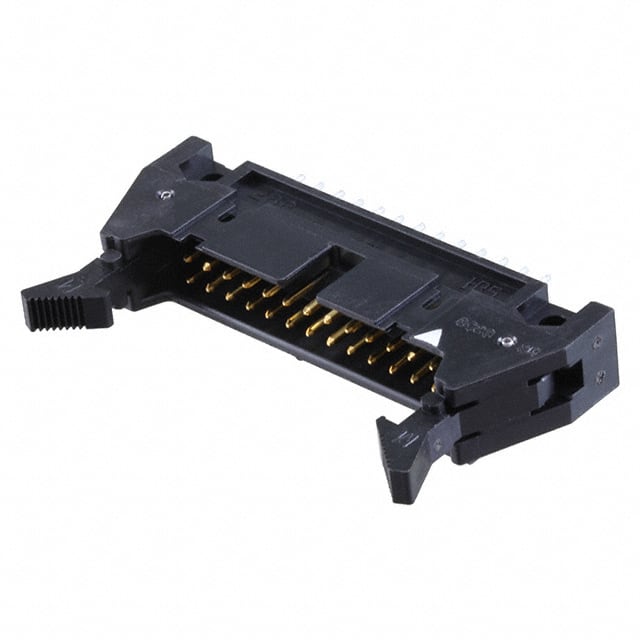

This is a 26-position, 2-row, 2.54mm pitch through-hole header from Hirose's HIF3B series. It features male square pins with tin-plated brass contacts, a shrouded 4-wall insulator, and latch lock/eject hooks for secure mating.
Electrical ratings include 1A current and 200V voltage. Contact resistance is 15 mΩ max, insulation resistance 1000 MΩ min, and withstanding voltage 650 V AC. Operating temperature range is -55°C to +85°C.
The header is designed for board-to-cable/wire applications. It is UL94 V-0 rated and RoHS3 compliant. The insulation material is PBT in black. Overall contact length is 16.70mm, insulation height 17.80mm.
26 positions.
2.54mm (0.100").
1A.
200V.
Through hole.
-55°C to +85°C.
15 mΩ max at 0.1A.
