| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,008 pcs
|
2008 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| Halogen Free | |
| Number of Bits | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Tape & Reel |

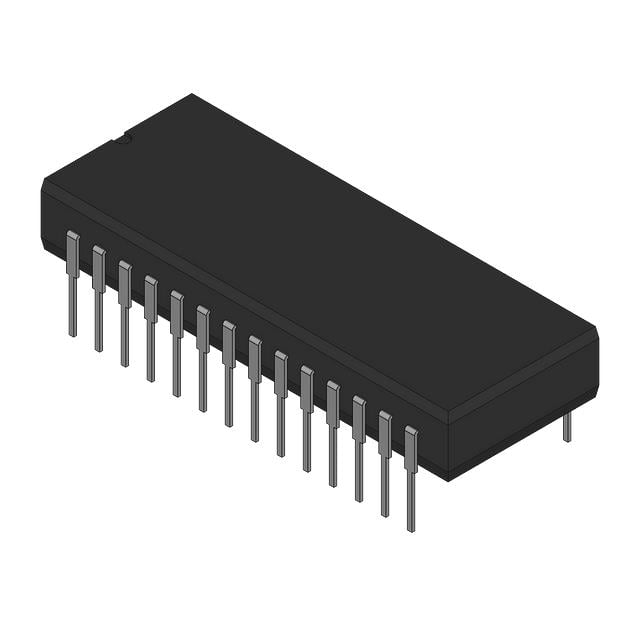

The Intersil HI5741BIBZ is a 14-bit, 100MSPS Digital to Analog Converter (DAC) designed for high-speed applications. Implemented using Intersil's BiCMOS 10V process, it operates from +5V and -5.2V supplies, providing a full-scale output current of 20.48mA. The device features an input data register and a bandgap voltage reference.
Key electrical specifications include a throughput rate of 100MSPS, low power consumption of 650mW, and an integral linearity error of 1 LSB. It also boasts low glitch energy (1pV-s) and an improved hold time of 0.25ns. The digital inputs are TTL/CMOS compatible, and internal logic is implemented in ECL for high switching speed and low noise. Laser trimming ensures 14-bit linearity across the entire transfer curve.
This DAC is suitable for applications such as cellular base stations, wireless communications, direct digital frequency synthesis, signal reconstruction, test equipment, high-resolution imaging systems, and arbitrary waveform generators. It is available in a 28-lead SOIC package.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.31 | $7.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The throughput rate is 100MSPS.
The low power consumption is 650mW.
The integral linearity error is 1 LSB.
The low glitch energy is 1 pV-s.
The operating temperature range is -40°C to 85°C.
It is available in a 28-SOIC package.
Yes, it is available in tape and reel packaging.
