| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
151 pcs
|
151 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Width |

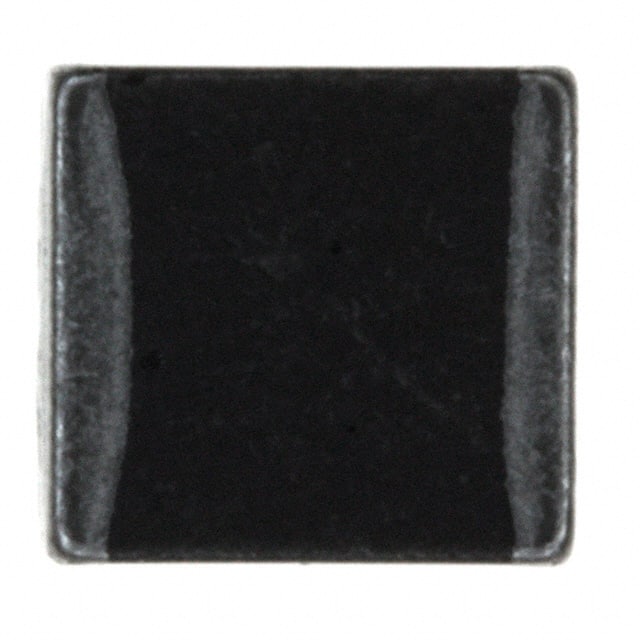

The HI2220P271R-10 is a single-line power line ferrite bead from Laird Technologies, designed for surface mount assembly. It offers an impedance of 270 Ohms at 100 MHz, making it suitable for suppressing high-frequency noise in power supply lines.
This ferrite bead is rated for a continuous current of 4A with a maximum DC resistance of 35mOhm, ensuring minimal power loss in high-current paths. It is housed in a 2220 (5650 Metric) package with dimensions of 5.59mm length and 5.08mm width, and a maximum height of 3.45mm.
The component operates over a temperature range of -40°C to 125°C, suitable for industrial and automotive environments. It is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.25 | $1.25 |
| 25+ | $1.07 | $1.07 |
| 50+ | $0.94 | $0.94 |
| 100+ | $0.83 | $0.83 |
| 250+ | $0.73 | $0.73 |
| 500+ | $0.71 | $0.71 |
| 2,000+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 270 Ohms at 100 MHz.
The maximum DC resistance is 35mOhm.
The maximum current rating is 4A.
It comes in a 2220 (5650 Metric) surface mount package.
The operating temperature range is -40°C to 125°C.
It is listed as RoHS3 compliant, but this status is unverified.
