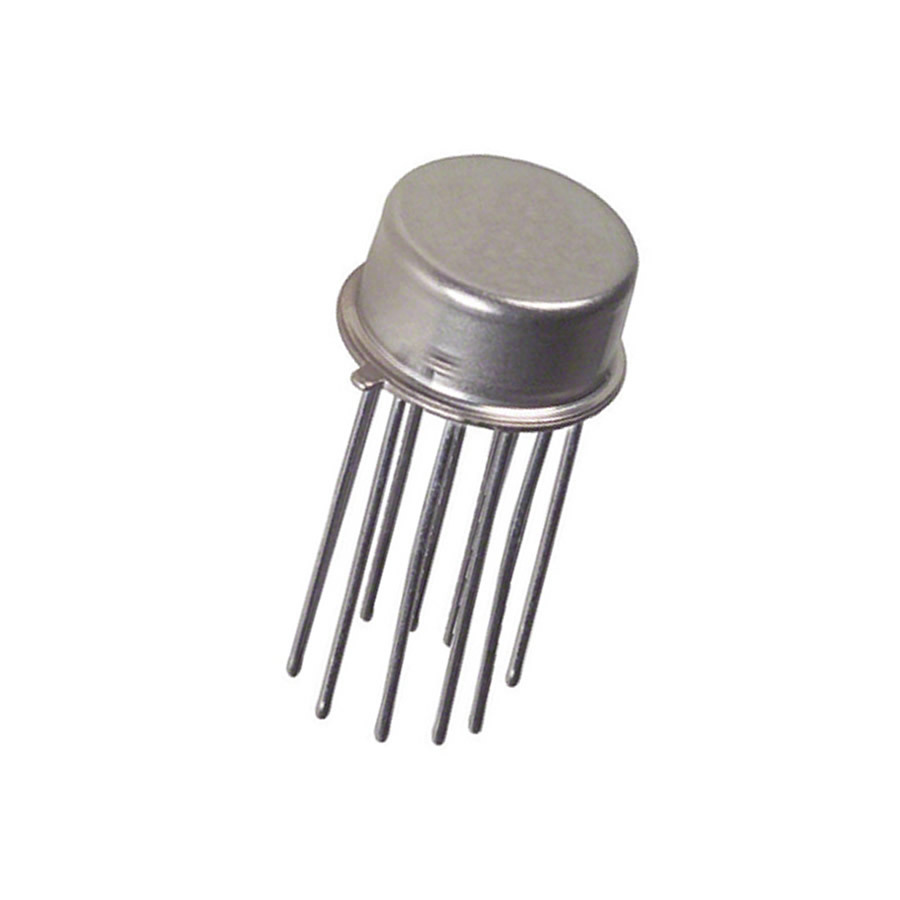

HI2-200-5 The HI2-200-5 is a CMOS integrated circuit manufactured by Harris Semiconductor. It operates within a temperature range of 0°C to 70°C and comes in a TO100 package.
Mfr Part #:

HI2-200-5

Available from 1 distributors
Mfr Name: HAR
HAR
The HI2-200-5 is a CMOS integrated circuit manufactured by Harris Semiconductor. It operates within a temperature range of 0°C to 70°C and comes in a TO100 package.
✓ Total Stock: 17 pcs
$ Price Range: $1.87

HI2-200-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HI2-200-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Power Dissipation (Max)
Technology
Weight
View Similar Products (0)

HI2-200-5 Description

Short technical summary and product information.

The HI2-200-5 is a specialized integrated circuit from Harris Semiconductor, utilizing CMOS technology. This component is designed for applications requiring precise switching and control, featuring a high control voltage of 2.4V and a low control voltage of 0.8V.



Key electrical characteristics include an on-resistance of 100 Ohms, a maximum analog switch current of 30mA peak-to-peak, and a maximum switch voltage of 30V peak-to-peak. The turn-on time is specified at a maximum of 500ns, with a test drain voltage of 10V.



Operating within a temperature range of 0°C to 70°C, the HI2-200-5 is housed in a TO100 package. Its design is suitable for various electronic systems where reliable switching and signal management are critical. The device has a maximum power dissipation of 450mW and nominal supply voltages of +/-15V.



This integrated circuit is not surface mounted, indicating through-hole mounting. It offers 2 circuits per device, making it a versatile component for complex circuit designs.

HI2-200-5 Quick Information

Product Type: Integrated Circuit
Canonical Name: HI2-200-5 Integrated Circuit
Subcategory: Transistors - Special Purpose

HI2-200-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HI2-200-5 Estimated Pricing

Qty Low High
1+ $1.87 $1.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

HI2-200-5 Features

  • CMOS technology for efficient operation.
  • Wide control voltage range specified.
  • Fast turn-on time of 500ns.
  • Operates from 0°C to 70°C.
  • TO100 package for through-hole mounting.

HI2-200-5 Applications

  • Suitable for signal switching applications.
  • Used in control circuitry.
  • Component for electronic assemblies.
  • Integration into custom designs.

HI2-200-5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the control voltage high for the HI2-200-5?

The control voltage high is 2.4V.

What is the control voltage low for the HI2-200-5?

The control voltage low is 0.8V.

What is the maximum turn-on time of the HI2-200-5?

The maximum turn-on time is 500 nanoseconds.

What package does the HI2-200-5 come in?

The HI2-200-5 is packaged in a TO100 case.

What is the operating temperature range of the HI2-200-5?

The device operates between 0°C and 70°C.

Is the HI2-200-5 RoHS compliant?

Yes, it is RoHS3 compliant.
