| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Operating Voltage | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

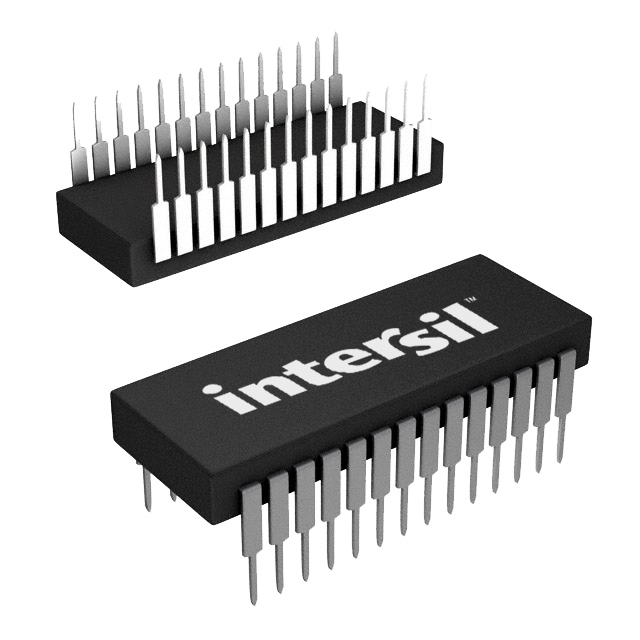

The Renesas HI1-574AKD-5 is a complete 12-bit analog-to-digital converter (ADC) designed for microprocessor interfacing. It offers a sampling rate of up to 40kSPS and utilizes a successive approximation (SAR) architecture.
Key electrical specifications include a 12-bit resolution, a parallel data interface, and selectable address features. The device operates with a digital supply voltage of 5V and analog supply voltages ranging from ±11.4V to ±16.5V. It supports both external and internal reference types.
This ADC is housed in a 28-CDIP package and is designed for through-hole mounting. It operates within a temperature range of 0°C to 75°C, making it suitable for various industrial and military data acquisition systems, electronic test equipment, and process control applications.
The HI-574A series converters are known for their laser-trimmed linearity, gain, and offset accuracy, along with a low-noise buried zener reference circuit.
The Renesas HI1-574AKD-5 is a 12-bit analog-to-digital converter.
The HI1-574AKD-5 has a maximum sampling rate of 40kSPS.
The HI1-574AKD-5 features a parallel data interface.
The operating temperature range for the HI1-574AKD-5 is 0°C to 75°C.
The HI1-574AKD-5 is supplied in a 28-CDIP package.
The HI1-574AKD-5 is designed for through-hole mounting.
