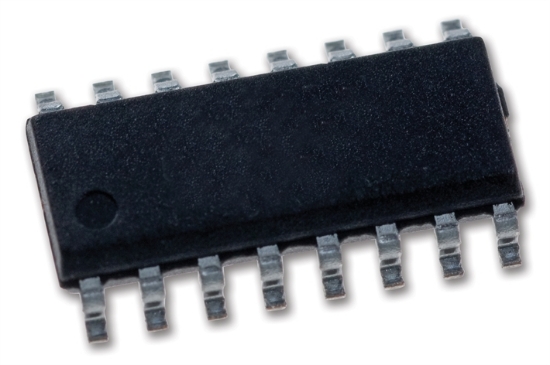

Hi-8428PST The HI-8428PST is an 8-channel discrete-to-digital sensor from Holt Integrated Circuits Inc., utilizing Silicon-on-Insulator (SOI) technology. It interfaces via SPI and offers configurable inputs with internal lightning protection.
Mfr Part #:

Hi-8428PST

Available from 1 distributors
Mfr Name: Holt Integrated Circuits Inc.
Holt Integrated Circuits Inc.
The HI-8428PST is an 8-channel discrete-to-digital sensor from Holt Integrated Circuits Inc., utilizing Silicon-on-Insulator (SOI) technology. It interfaces via SPI and offers configurable inputs with internal lightning protection.
✓ Total Stock: 260 pcs
$ Price Range: $4.71

Hi-8428PST Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
260 pcs
On Request
260 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

Hi-8428PST Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Interface
Mounting Type
Operating Temperature
Voltage
View Similar Products (0)

Hi-8428PST Description

Short technical summary and product information.

The Holt Integrated Circuits Inc. HI-8428PST is an 8-channel discrete-to-digital sensor designed for avionics applications. Fabricated with robust Silicon-on-Insulator (SOI) technology, it interfaces with systems via a 10MHz Serial Peripheral Interface (SPI), allowing for efficient daisychaining.



Each of the eight discrete inputs is individually configurable as either GND/Open or Supply/Open (28V/Open). The input thresholds and hysteresis comply with the Airbus ABD0100H specification. In GND/Open mode, thresholds are set at 4.5V/10.5V, and in Supply/Open mode at 6V/12V. The device operates from a 3.3V (+/- 5%) digital supply and a 12V - 16.5V analog supply. A 1mA wetting current is sourced from each SENSE input in GND/Open mode to prevent dry relay or switch contacts.



All sense inputs are internally lightning protected to RTCA/DO160G, Section 22 Level 3 without external components. The HI-8428PST also withstands inadvertent application of 115V AC/400 Hz power to its sense inputs and is MIL-STD-704 compliant. It includes an internal self-test mode to check analog comparators and logic.



The HI-8428PST is available in industrial (−40°C to +85°C) and extended (−55°C to +125°C) temperature ranges. It comes in a 16-pin, narrow body SOIC package with an exposed heat pad and is a drop-in replacement for the DEI1282.

Hi-8428PST Quick Information

Product Type: Discrete-to-Digital Sensor
Canonical Name: Holt Integrated Circuits Inc. HI-8428PST 8-Channel Discrete-to-Digital Sensor
Subcategory: Interface ICs

Hi-8428PST Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

Hi-8428PST Estimated Pricing

Qty Low High
1+ $4.71 $4.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

Hi-8428PST Features

  • Eight individually configurable discrete inputs.
  • Internal lightning protection to RTCA/DO160G.
  • 10MHz Serial Peripheral Interface (SPI).
  • Configurable input thresholds and hysteresis.
  • Withstands 115V AC/400 Hz power on inputs.

Hi-8428PST Applications

  • Used in avionics and aerospace systems.
  • Ideal for industrial control interfaces.
  • Suitable for rugged sensor interface applications.
  • Applicable in harsh environment signal conditioning.

Hi-8428PST FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage requirement for the Hi-8428PST?

The Hi-8428PST operates with a 3.3V digital supply, a 12V to 16.5V analog supply, and additional modes: 28V/Open, 4.5V/10.5V, and 6V/12V.

What interface does the Hi-8428PST use?

The Hi-8428PST uses an SPI interface with a maximum frequency of 10MHz.

What is the operating temperature range of the Hi-8428PST?

The Hi-8428PST is available with two operating temperature ranges: -40°C to +85°C and -55°C to +125°C.

Does the Hi-8428PST include lightning protection?

Yes, the Hi-8428PST features internal lightning protection to RTCA/DO160G, Section 22 Level 3.

What is the package type of the Hi-8428PST?

The Hi-8428PST is packaged in a 16-pin plastic ESOIC-NB surface mount package.

What is the wetting current of the Hi-8428PST?

The Hi-8428PST provides a 1mA wetting current sourced from each SENSE input when GND/Open mode is selected.

Is the Hi-8428PST a replacement for any other part?

Yes, the Hi-8428PST is a drop-in replacement for the Datel DEI1282.
