Mfr Part #:

HI-3593PQI

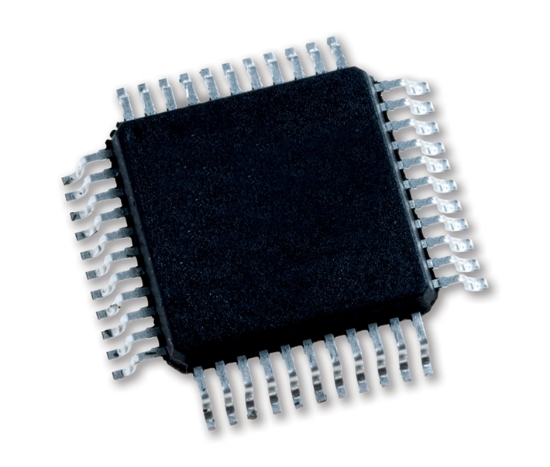

The Holt Integrated Circuits HI-3593PQI is a CMOS integrated circuit for interfacing microcontrollers to the ARINC 429 serial bus. It operates from a single 3.3V supply.

✓ Total Stock: 200 pcs

$ Price Range: $1.17

HI-3593PQI Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	200 pcs On Request	200 pcs	On Request	1	On Request	On Request	21+	On Request	On Request

HI-3593PQI Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Holt Integrated Circuits Inc.
Interface	SPI
Operating Temperature	-40°C to +85°C
SVHC Present	Not Present
Voltage	3.3V

View Similar Products (0)

HI-3593PQI Description

Short technical summary and product information.

The HI-3593PQI from Holt Integrated Circuits is a CMOS integrated circuit designed to interface a Serial Peripheral Interface (SPI) enabled microcontroller to the ARINC 429 serial bus. This device features two receivers with user-programmable label recognition for any combination of 256 possible labels, a 32x32 Receive FIFO, and priority-label buffers. The independent transmitter includes a 32x32 Transmit FIFO and a built-in line driver.

Operating from a single 3.3V supply, the HI-3593PQI includes an on-chip DC/DC converter to generate the necessary bipolar ARINC 429 differential voltage levels for direct bus driving. It supports industrial and extended temperature ranges (-40°C to +85°C) and utilizes a 10MHz, four-wire SPI for host communication. The package is a 44-Pin Plastic Quad Flat Pack (PQFP) or MQFP.

Key features include independent data rates for transmit and receive, programmable options for the 32nd bit (data or parity), and the ability to switch the bit-significance of ARINC 429 labels. The SPI interface minimizes host interface signals, making it suitable for a wide range of microcontrollers.

HI-3593PQI Quick Information

Product Type: ARINC 429 Interface IC

Canonical Name: HI-3593PQI ARINC 429 Interface IC

Subcategory: ARINC 429

HI-3593PQI Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HI-3593PQI Estimated Pricing

Qty	Low	High
1+	$1.17	$1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

HI-3593PQI Features

ARINC 429 compliant interface.
Single 3.3V power supply operation.
Programmable label recognition for 256 labels.
32x32 Receive and Transmit FIFOs.
Industrial and extended temperature ranges.

HI-3593PQI Applications

Interfaces SPI microcontrollers to ARINC 429 bus.
Provides on-chip ARINC 429 line driver and receiver.
Used in avionics data communication systems.
Enables programmable label recognition for 256 labels.

HI-3593PQI FAQs

5 frequently asked questions generated from this part’s specifications.

What is the operating voltage for the HI-3593PQI?

The HI-3593PQI operates from a single 3.3V power supply.

What package type is the HI-3593PQI available in?

The HI-3593PQI is available in a 44-Pin Plastic Quad Flat Pack (PQFP) or MQFP package.

What is the operating temperature range for the HI-3593PQI?

The operating temperature range for the HI-3593PQI is -40°C to +85°C.

What interface protocols does the HI-3593PQI support?

The HI-3593PQI supports ARINC 429 and Serial Peripheral Interface (SPI).

How many labels can the HI-3593PQI recognize?

The HI-3593PQI supports programmable label recognition for 256 labels.
