| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,731 pcs
|
1731 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,731 pcs
|
1731 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance |

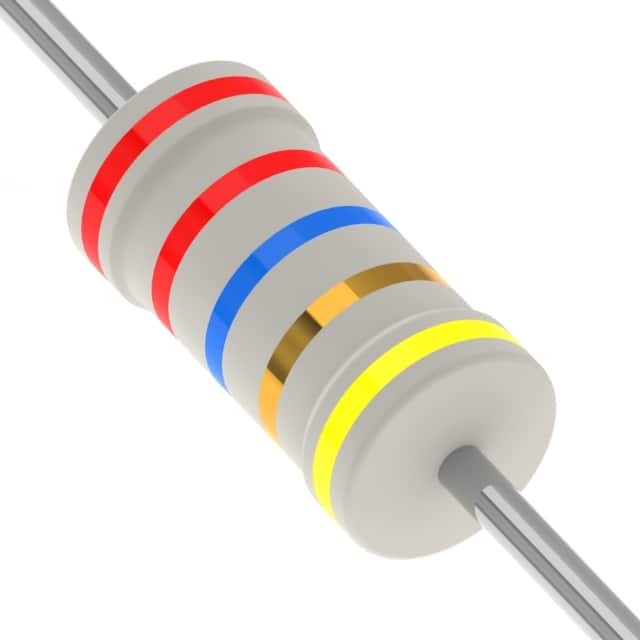

The Yageo HHV-50JT-52-22M is a through-hole resistor designed for various electronic applications. It features a resistance value of 22 MΩ with a tolerance of ±5%, ensuring precise circuit operation. The resistor is rated for 0.5W (1/2W) of power and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±200ppm/°C.
Constructed with a metal film composition, this component is suitable for high-voltage applications and includes a flame retardant coating for safety. The axial package measures 0.130" Dia x 0.354" L (3.30mm x 9.00mm). It has 2 terminations and a moisture sensitivity level of 1.
This component is RoHS3 compliant and REACH unaffected, making it suitable for a wide range of manufacturing processes. Its features make it a reliable choice for applications requiring stable performance under varying conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the HHV-50JT-52-22M resistor is 22 MΩ.
The tolerance of the HHV-50JT-52-22M resistor is ±5%.
The power rating of the HHV-50JT-52-22M resistor is 0.5W.
The operating temperature range for the HHV-50JT-52-22M resistor is -55°C to 155°C.
The temperature coefficient of the HHV-50JT-52-22M resistor is ±200ppm/°C.
The package size of the HHV-50JT-52-22M resistor is 0.130" Dia x 0.354" L (3.30mm x 9.00mm).
