| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
609 pcs
|
609 pcs | On Request | 1 | On Request | On Request | 830 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Termination | |
| Termination Style | |
| Voltage Rating |

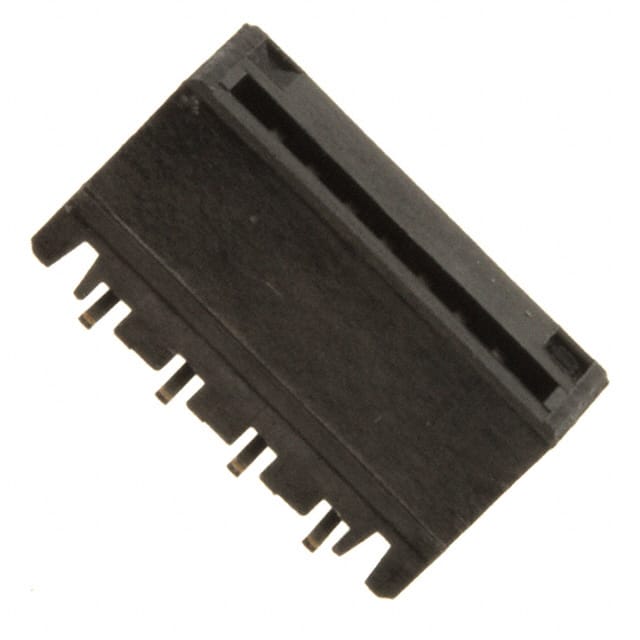

The HFW7S-2STE1LF is a 7-position, 1.00mm pitch FFC/FPC connector from Amphenol ICC, designed for surface mount assembly with a vertical orientation and 1-sided contacts. It supports FFC and FPC cable types with straight or tapered ends, accommodating cable thicknesses of 0.30mm and 0.33mm.
The connector features tin-plated phosphor bronze contacts for reliable electrical performance. The housing is made of polyamide (PA6T), Nylon 6T, glass filled material, rated UL94 V-0 for flammability. The height above board is 5.30mm (0.209 inches).
Electrical rating is 100V, with an operating temperature range of -55°C to 85°C. The connector is RoHS3 compliant, REACH unaffected, and has an MSL (Moisture Sensitivity Level) of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 2,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
1.00mm (0.039 inches).
100V DC.
Surface mount.
-55°C to 85°C.
Phosphor bronze with tin plating.
Polyamide (PA6T), Nylon 6T, glass filled.
