| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,634 pcs
|
1634 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

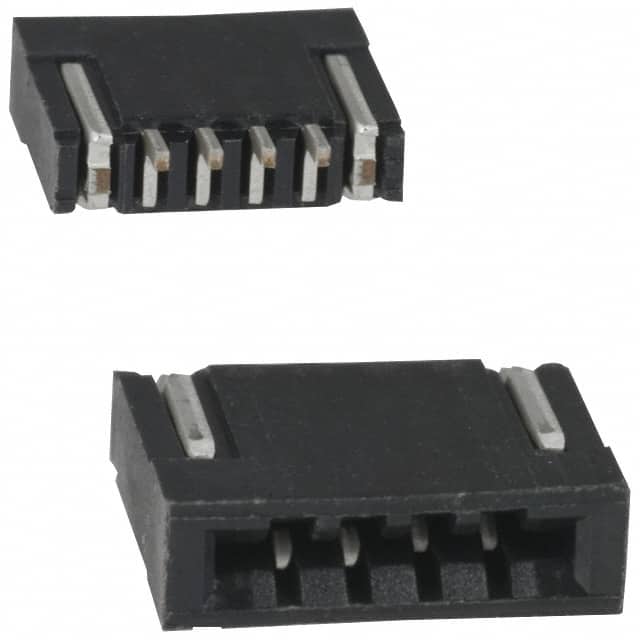

This Amphenol ICC HFW4R-1STE1LF is a 4-position FFC/FPC connector with a 1.00mm pitch, designed for surface mount right-angle mounting. It features bottom contact configuration, compatible with FFC and FPC cables of 0.30mm thickness. The connector accepts straight or tapered cable ends. The housing is made of glass-filled polyamide (PA6T) with UL94 V-0 flammability rating. Contacts are phosphor bronze with tin finish. Electrical rating: 100V. Operating temperature range: -55°C to 105°C. Height above board is 1.90mm. This connector is suitable for compact electronic assemblies requiring reliable flat flexible cable interconnections.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
1.00mm (0.039").
100V.
Surface Mount, Right Angle.
-55°C to 105°C.
Tin.
1.90mm (0.075").
