| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
258 pcs
|
258 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Data Rate | |
| Form Factor | |
| Operating Voltage | |
| Power Consumption | |
| Wavelength |

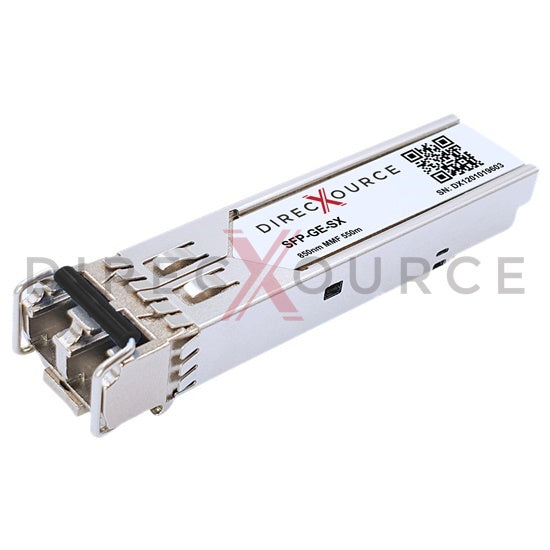

The Avago Technologies HFCT-5710L is a 1000BASE-SX SFP optical transceiver module designed for 1000BASE Ethernet applications. This module provides a data rate of up to 1000Mbps and can transmit signals up to 550 meters over OM2 multi-mode fiber (MMF) using an 850nm wavelength.
It features a VCSEL transmitter and a PIN photo detector for reliable performance. The transceiver is compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3z 1000BASE-SX, and SERDES standards. The electrical interface is MSA compliant with a 20-pin edge connector, and the optical interface utilizes a Duplex LC connector.
Key features include hot-pluggable SFP form factor, built-in Digital Diagnostic Monitoring (DDM) for real-time performance monitoring via a 2-wire interface, and a single 3.3V power supply. The operating temperature range is 0 to 70°C for commercial applications. This transceiver is also compliant with RoHS, REACH, CE, and FCC standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1000 Mbsp (1 Gbps).
850 nm.
550 meters over OM2 multimode fiber.
3.3V single power supply.
0 to 70°C (commercial temperature range).
Less than 0.6 watts.
Yes, it supports DDM/DOM per SFF-8472.
