| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
906 pcs
|
906 pcs | On Request | 1 | On Request | On Request | 1136+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Fault Protection | |
| Internal Switch(s) | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Topology | |
| Voltage |
The HFC0300HS-C429-LF-Z from Monolithic Power Systems Inc. is an integrated circuit designed for offline flyback switching applications. It supports isolated output configurations and operates with a supply voltage ranging from 8V to 20V, requiring a 12V startup voltage. The device is capable of switching frequencies up to 600kHz, enabling efficient energy conversion.

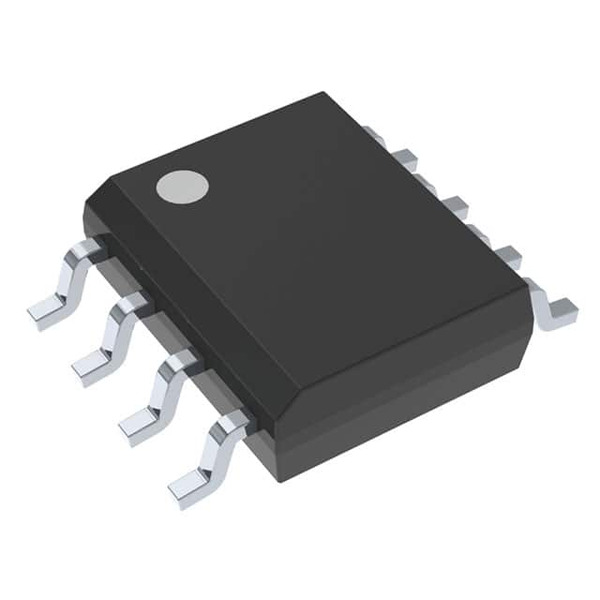

This IC is housed in an 8-SOIC package, suitable for surface mount applications. It includes features such as frequency control and robust fault protection, covering overload, over-temperature, over-voltage, and short circuit conditions. The operating temperature range is from -40°C to 125°C (TJ).
Ideal for AC-DC converters, power adapters, and isolated switch-mode power supplies, the HFC0300HS-C429-LF-Z is suited for designs requiring compact form factors and high-frequency power conversion. Its isolated output capability ensures safety and compliance in various power management solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 8V to 20V.
The startup voltage is 12V.
The maximum switching frequency is up to 600kHz.
The operating temperature range is -40°C to 125°C.
It supports Flyback topology.
Yes, it provides isolated output.
It includes protection for Over Load, Over Temperature, Over Voltage, and Short Circuit.
