| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,491 pcs
|
2491 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Data Rate | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Wavelength |

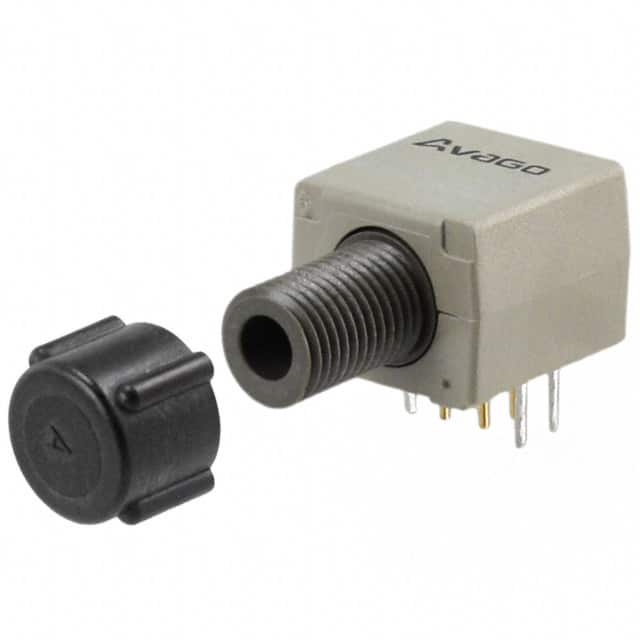

The HFBR-0400Z Series from Broadcom Limited includes cost-effective, high-performance fiber optic components for information systems and industrial applications. The HFBR-2406Z receiver, operating at 125 MHz, can achieve data rates up to 160 megabaud.
This component is compatible with industry-standard connectors such as ST®, SMA, SC, and FC, and supports various fiber sizes including 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm. It features an 820 nm wavelength technology and operates within a wide temperature range of -40 °C to +85 °C.
Applications for this series include 100Base-SX Fast Ethernet, media/fiber conversion, switches, routers, hubs, NICs, Local Area Networks, computer peripheral and monitor links, digital cross-connects, central office switch/PBX links, video links, modems, multiplexers, and suitable for Tempest Systems.
The HFBR-2406Z is designed for auto-insertion and wave soldering, requiring no board mounting hardware. It is RoHS compliant and meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards, as well as the TIA/EIA-785 100Base-SX standard.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HFBR-2406Z has a data rate of up to 160 MBd.
The operating voltage for the HFBR-2406Z is between 4.75V and 5.25V.
The HFBR-2406Z operates in a temperature range of -40°C to +85°C.
The HFBR-2406Z is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the HFBR-2406Z is 1 Unlimited.
The HFBR-2406Z is compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm fiber sizes.
The HFBR-2406Z supports ST®, SMA, SC, and FC connector types.
