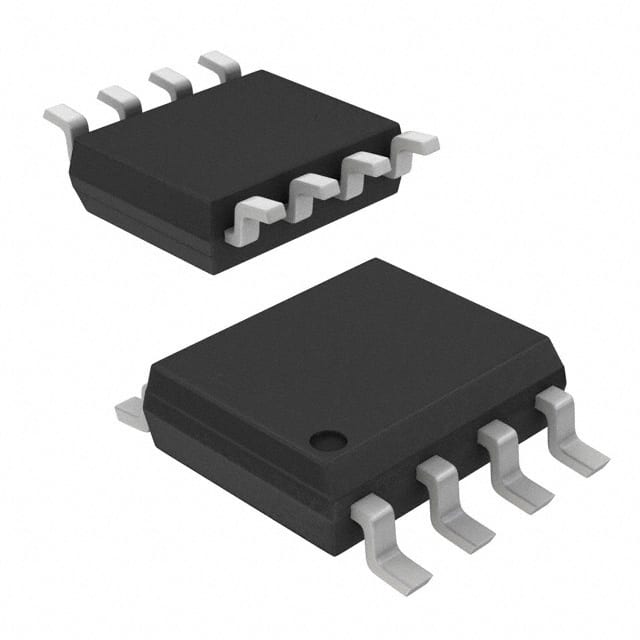

HFA3101BZ The Renesas HFA3101BZ is a Gilbert Cell UHF Transistor Array operating from 0Hz to 10GHz. It features a high gain bandwidth product of 10GHz and a low noise figure of 1.7dB.
Mfr Part #:

HFA3101BZ

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas HFA3101BZ is a Gilbert Cell UHF Transistor Array operating from 0Hz to 10GHz. It features a high gain bandwidth product of 10GHz and a low noise figure of 1.7dB.
✓ Total Stock: 7,140 pcs
$ Price Range: $5.77

HFA3101BZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
7,140 pcs
On Request
7140 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HFA3101BZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Lead Spacing
Mounting Type
Noise Figure
Number of Mixers
Storage Temperature
Supplier Device Package
Tape & Reel
View Similar Products (0)

HFA3101BZ Description

Short technical summary and product information.

The Renesas HFA3101BZ is an NPN transistor array configured as a Multiplier Cell, designed for UHF applications. It operates across a wide frequency range from 0Hz to 10GHz, with a high gain bandwidth product of 10GHz and a high power gain bandwidth product of 5GHz.



Key electrical characteristics include a typical current gain (hFE) of 70 and a low noise figure of 1.7dB. The device also boasts excellent hFE and VBE matching, along with a low collector leakage current of less than 0.01nA. It is pin-to-pin compatible with the UPA101.



This transistor array is housed in an 8-SOIC package with surface mount mounting type. The 8-SOIC package measures 0.154 inches (3.90mm) in width. The HFA3101BZ is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).

HFA3101BZ Quick Information

Product Type: RF Mixer
Canonical Name: HFA3101BZ Gilbert Cell UHF Transistor Array
Subcategory: Gilbert Cell

HFA3101BZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free

HFA3101BZ Estimated Pricing

Qty Low High
1+ $5.77 $5.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

HFA3101BZ Features

  • Operates from 0Hz to 10GHz.
  • 10GHz typical gain bandwidth product.
  • Low noise figure of 1.7dB.
  • Excellent hFE and VBE matching.
  • Surface mount 8-SOIC package.

HFA3101BZ Applications

  • Suitable for RF frequency conversion applications.
  • Used in high-frequency RF mixers and transceivers.
  • Ideal for UHF communication and radar systems.
  • Applicable in satellite and wireless communication devices.
  • Designed for RF signal processing in electronic systems.

HFA3101BZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating frequency range of the HFA3101BZ?

The HFA3101BZ operates from 0Hz to 10GHz.

What is the typical noise figure of the HFA3101BZ?

The typical noise figure for the HFA3101BZ is 1.7dB.

What is the gain bandwidth product of the HFA3101BZ?

The HFA3101BZ has a typical gain bandwidth product of 10GHz.

What package type is the HFA3101BZ available in?

The HFA3101BZ is available in an 8-SOIC package.

What is the mounting type for the HFA3101BZ?

The HFA3101BZ is a surface mount device.

Is the HFA3101BZ RoHS compliant?

The HFA3101BZ is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for the HFA3101BZ?

The MSL for the HFA3101BZ is 1 Unlimited.
