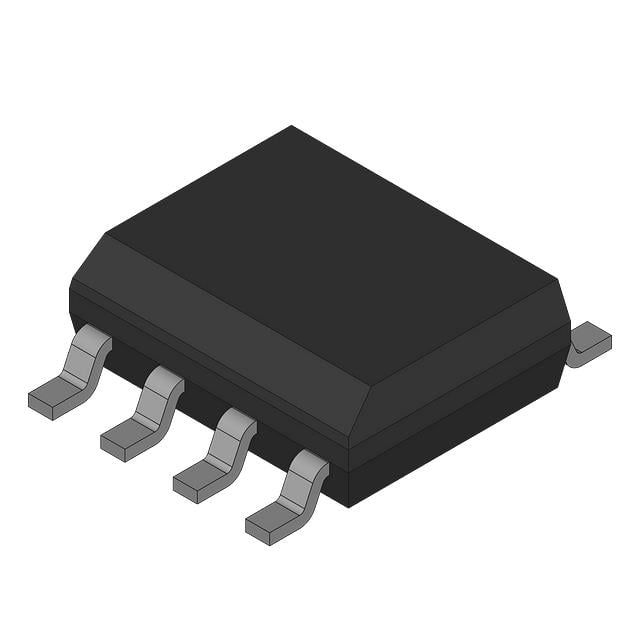

HFA1120IB The Intersil HFA1120IB is a current feedback amplifier with a 670 MHz bandwidth and a 2300V/µs slew rate. It is available in an 8-SOIC surface mount package.
Mfr Part #:

HFA1120IB

Available from 2 distributors
Mfr Name: Intersil
Intersil
The Intersil HFA1120IB is a current feedback amplifier with a 670 MHz bandwidth and a 2300V/µs slew rate. It is available in an 8-SOIC surface mount package.
✓ Total Stock: 8,144 pcs
$ Price Range: $4.71

HFA1120IB Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,037 pcs
On Request
7037 pcs On Request 1 On Request On Request 0118+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,107 pcs
On Request
1107 pcs On Request 1 On Request On Request 00+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HFA1120IB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Mounting Type
Number of Circuits
Operating Temperature
Slew Rate
Supply Current
View Similar Products (0)

HFA1120IB Description

Short technical summary and product information.

The Intersil HFA1120IB is a single-channel current feedback amplifier designed for high-speed applications. It offers a -3dB bandwidth of 670 MHz and a rapid slew rate of 2300V/µs, making it suitable for demanding signal processing tasks.



This amplifier operates within a supply voltage range of 9V to 11V and consumes a typical supply current of 21mA. Key electrical characteristics include an input bias current of 12 µA and an input offset voltage of 2 mV. The output current capability per channel is 60 mA.



Packaged in an 8-SOIC surface mount configuration, the HFA1120IB is designed for efficient integration into printed circuit boards. Its operating temperature range is from -40°C to 85°C, ensuring reliable performance in various environmental conditions. The component is RoHS3 compliant.

HFA1120IB Quick Information

Product Type: Amplifier
Canonical Name: HFA1120IB Current Feedback Amplifier
Subcategory: Current Feedback

HFA1120IB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HFA1120IB Estimated Pricing

Qty Low High
1+ $4.71 $4.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

HFA1120IB Features

  • High slew rate of 2300V/µs.
  • Wide bandwidth of 670 MHz.
  • Single channel current feedback amplifier.
  • Surface mount 8-SOIC package.
  • RoHS3 compliant.

HFA1120IB Applications

  • High-speed video and imaging systems.
  • RF and IF signal amplification.
  • Pulse and waveform generation circuits.
  • Data acquisition and test equipment.
  • Communication infrastructure equipment.

HFA1120IB FAQs

5 frequently asked questions generated from this part’s specifications.
What is the slew rate of the HFA1120IB amplifier?

The slew rate of the HFA1120IB amplifier is 2300V/µs.

What is the -3dB bandwidth of the HFA1120IB?

The -3dB bandwidth of the HFA1120IB is 670 MHz.

What is the operating temperature range for the HFA1120IB?

The operating temperature range for the HFA1120IB is -40°C to 85°C.

What package type is the HFA1120IB available in?

The HFA1120IB is available in an 8-SOIC package.

Is the HFA1120IB RoHS compliant?

Yes, the HFA1120IB is RoHS3 Compliant.
