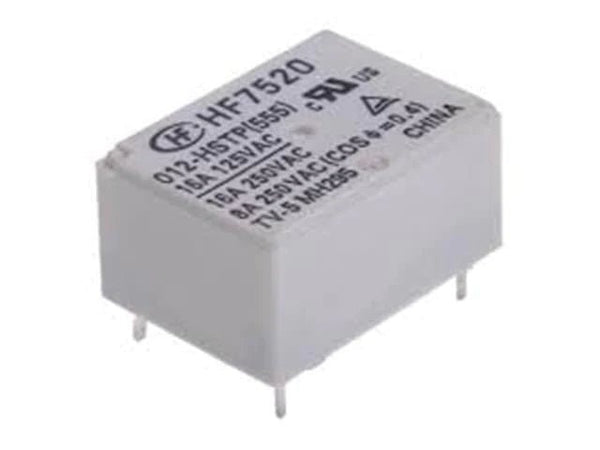

HF7520/024-HSTP The HF7520/024-HSTP is a high power capacity, horizontal PCB mounted, sealed relay from HF. It features a 24VDC coil and a 1 Form A contact configuration.
Mfr Part #:

HF7520/024-HSTP

Available from 1 distributors
Mfr Name: HF
HF
The HF7520/024-HSTP is a high power capacity, horizontal PCB mounted, sealed relay from HF. It features a 24VDC coil and a 1 Form A contact configuration.
✓ Total Stock: 6 pcs
$ Price Range: $1.88

HF7520/024-HSTP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HF7520/024-HSTP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Resistance
Coil Voltage
Contact Form
Mounting Type
View Similar Products (0)

HF7520/024-HSTP Description

Short technical summary and product information.

This HF7520/024-HSTP relay is designed for high power and capacity applications, featuring a horizontal PCB mount and a sealed construction for environmental protection.



It operates with a 24VDC coil and has a coil resistance of 2880 Ohms. The contact configuration is 1 Form A (SPST-NO), capable of switching 10A at 30VDC or 16A at 250VAC.



The relay is suitable for direct mounting onto printed circuit boards, simplifying integration into electronic designs. Its sealed nature helps protect against dust and moisture ingress.



This component is categorized under special purpose relays, indicating its suitability for specific or demanding applications where standard relays may not suffice.

HF7520/024-HSTP Quick Information

Product Type: Relay
Canonical Name: HF7520/024-HSTP High Power Capacity Horizontal PCB Mounted Sealed Relay
Subcategory: Special Purpose

HF7520/024-HSTP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HF7520/024-HSTP Estimated Pricing

Qty Low High
1+ $1.88 $1.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

HF7520/024-HSTP Features

  • High power capacity horizontal relay.
  • Sealed construction for environmental protection.
  • 24VDC coil with 2880 Ohm resistance.
  • 1 Form A (SPST-NO) contact configuration.
  • PCB mount for easy integration.

HF7520/024-HSTP Applications

  • Suitable for high power switching.
  • Ideal for PCB mounted circuits.
  • Used in demanding applications.
  • Reliable component for automation.

HF7520/024-HSTP FAQs

4 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the HF7520/024-HSTP relay?

The coil voltage is 24 VDC.

What is the contact rating of the HF7520/024-HSTP relay?

The contact rating is 10 A / 30 VDC and 16 A / 250 VAC.

What type of contact form does the HF7520/024-HSTP relay have?

It has a 1 Form A (SPST-NO) contact configuration.

How is the HF7520/024-HSTP relay mounted?

The relay is designed for PCB mounting.
