| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
255 pcs
|
255 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Tape & Reel | |
| Termination Style | |
| Width |

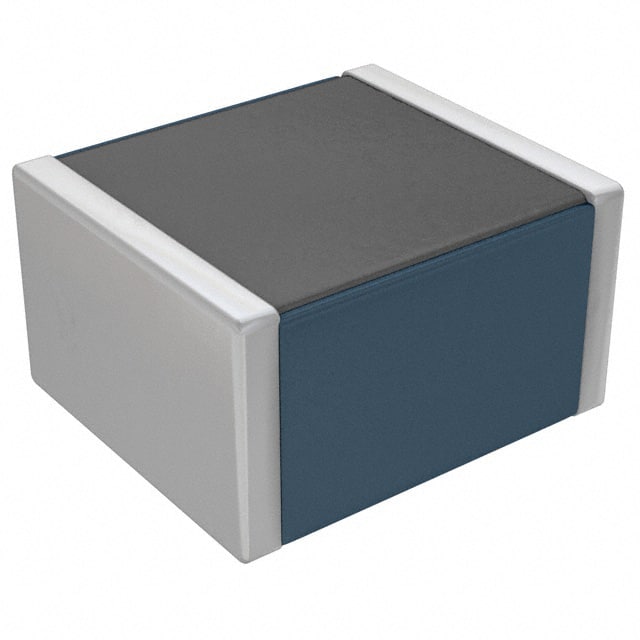

The HF70ACC575032-T from TDK Corporation is a surface mount ferrite bead designed for EMC suppression on DC power lines. It belongs to the ACC series and provides single-line filtering with an impedance of 300 Ω (nominal, ±25% tolerance) at 100 MHz. The component is rated for a maximum DC current of 3 A and features a low DC resistance of 40 mΩ max, minimizing power loss.
This ferrite bead is housed in a 2220 (5750 Metric) package with dimensions 5.70 mm length, 5.00 mm width, and 3.50 mm maximum height, making it suitable for compact PCB layouts. The part is designed for surface mount assembly and is available in tape and reel packaging.
Typical applications include noise suppression on DC power input lines, filtering in power supply circuits, and electromagnetic interference (EMI) reduction in various electronic equipment. The HF70ACC575032-T is RoHS3 compliant and REACH unaffected, though compliance certifications are unverified.
300 Ω at 100 MHz (nominal, ±25% tolerance).
3 A.
Maximum 40 mΩ.
2220 (5750 Metric) — 5.70 mm L x 5.00 mm W x 3.50 mm H.
Listed as RoHS3 Compliant, but status is unverified.
Yes, surface mount (SMD) with solder terminations.
