| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,110 pcs
|
1110 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
870 pcs
|
870 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| SVHC Present | |
| Width |

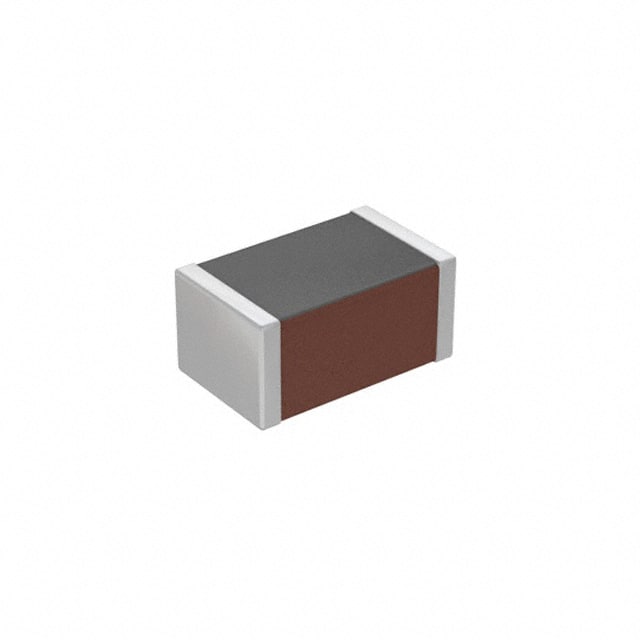

The TDK HF70ACB201209-T is a surface-mount ferrite bead designed for signal line filtering applications. It provides 10 Ohm impedance at 100 MHz to suppress high-frequency noise. The component is rated for a maximum DC current of 600mA and has a maximum DC resistance of 100mOhm, ensuring minimal power loss in the circuit.
This ferrite bead is housed in an 0805 (2012 Metric) package with dimensions of 2.00mm x 1.25mm and a maximum height of 1.10mm. It operates over a temperature range of -40°C to 125°C, making it suitable for a wide variety of environments. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
Typical applications include noise suppression in power lines and signal lines of consumer electronics, telecommunications equipment, and industrial control systems. The single-line configuration simplifies PCB layout for targeted filtering needs.
The impedance is 10 Ohm at 100 MHz.
The maximum DC current rating is 600 mA.
The package is 0805 (2012 Metric) with dimensions 2.00mm x 1.25mm and maximum height 1.10mm.
The operating temperature range is -40°C to 125°C.
Yes, it is listed as RoHS3 compliant.
