| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
243 pcs
|
243 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Packaging Style | |
| Width |

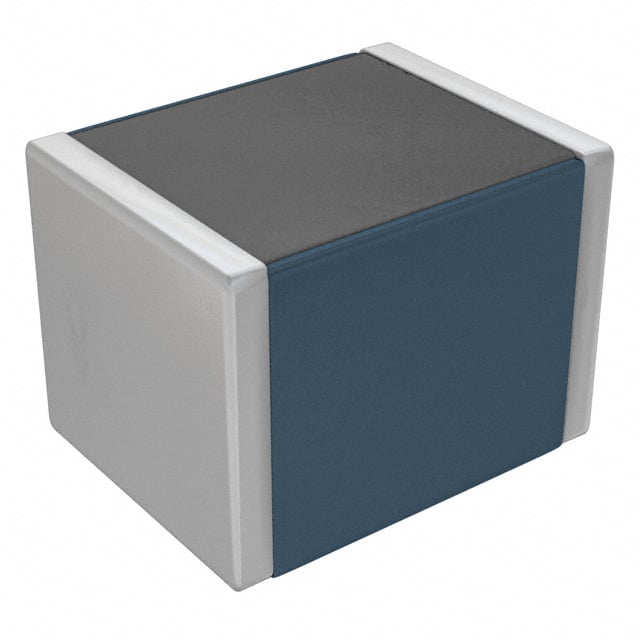

The HF50ACC635050-T is a surface mount ferrite bead from TDK's ACC series, designed for power line EMC suppression. It offers a nominal impedance of 600 Ω at 100 MHz with a ±25% tolerance, suitable for attenuating high-frequency noise on DC power rails.
Key electrical specifications include a maximum DC resistance of 40 mΩ and a maximum rated current of 3 A, providing efficient filtering with minimal power loss. The component is a single-line ferrite bead, optimized for broadband noise suppression in power supply circuits.
Packaged in a 2520 (6450 Metric) case measuring 6.40 mm length by 5.00 mm width, with a maximum height of 5.04 mm. The device is designed for surface mount assembly and is available in tape-and-reel packaging for automated production.
600 Ω at 100 MHz, nominal, with ±25% tolerance.
3 A maximum.
40 mΩ maximum.
2520 (6450 Metric) surface mount package.
RoHS3 Compliant per existing data, but this has not been verified from an official source.
MSL 1 (unlimited) per existing unverified data.
