| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
378 pcs
|
378 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Impedance Tolerance | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Tape & Reel | |
| Termination Style | |
| Width |

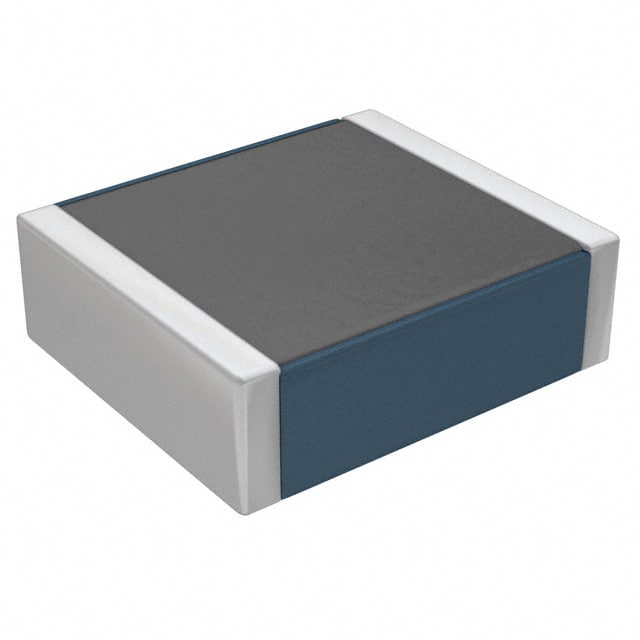

The HF50ACC575018-T is a surface-mount ferrite bead from TDK Corporation's ACC series, designed for DC power line EMI suppression. It offers a nominal impedance of 180 Ω at 100 MHz with a tolerance of ±25%, providing effective broadband noise filtering. With a maximum DC resistance of 40 mOhm and a high current rating of 3A, this component is suitable for power supply lines that require minimal voltage drop.
This bead is a single-line filter, packaged in a 2220 (5750 Metric) SMD case with dimensions 5.70 mm x 5.00 mm and a maximum height of 2.10 mm. It is supplied on tape and reel (180 mm reel) for automated assembly.
The ACC series includes multiple impedance values at the same footprint, enabling designers to select the optimal part for their filtering needs. The HF50ACC575018-T is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited floor life).
180 Ω ±25% at 100 MHz.
40 mOhm (0.04 Ω).
3 A maximum.
2220 (5750 Metric), dimensions 5.70mm x 5.00mm x 2.10mm (max).
RoHS3 status is listed but unverified; treat as low confidence.
Surface mount (SMD).
Power Line filter.
