| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
949 pcs
|
949 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Width |

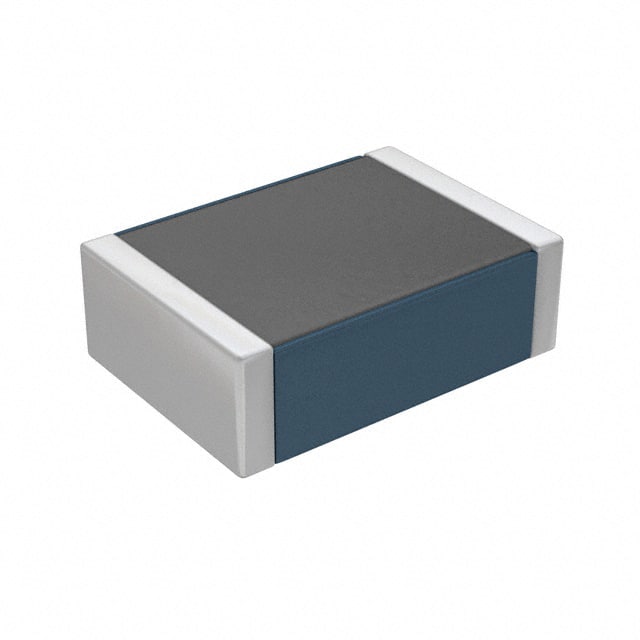

This is a single-line ferrite bead from TDK Corporation, designed for signal line filtering. It provides 125 Ω impedance at 100 MHz, with a maximum DC resistance of 50 mOhm and a current rating of 1.5 A.
The component operates over a temperature range of -40°C to 125°C, making it suitable for a wide range of environments. It is surface mounted in a 1812 (4532 Metric) package with dimensions 4.50mm x 3.20mm and a maximum height of 1.75mm.
Typical applications include noise suppression in power and signal lines. The ferrite bead's impedance characteristic helps attenuate high-frequency noise while allowing DC or low-frequency signals to pass with minimal loss.
-40°C to 125°C.
1812 (4532 Metric) surface mount package, dimensions 4.50mm x 3.20mm, max height 1.75mm.
RoHS3 Compliant (unverified).
125 Ω at 100 MHz.
1.5 A.
50 mOhm.
Surface mount.
