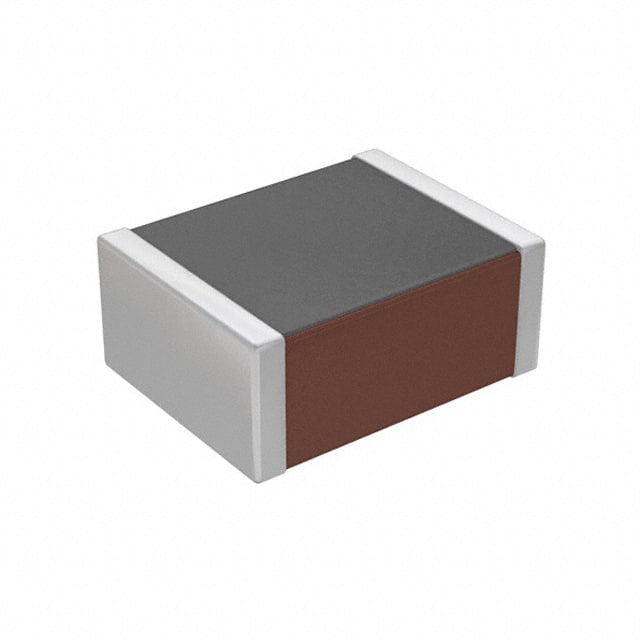

HF50ACB322513-T TDK HF50ACB322513-T is a 60 Ω signal line ferrite bead in a 1210 (3225 Metric) surface mount package, rated for 400mA continuous current.
Mfr Part #:

HF50ACB322513-T

Available from 3 distributors
Mfr Name: TDK Corporation
TDK Corporation
TDK HF50ACB322513-T is a 60 Ω signal line ferrite bead in a 1210 (3225 Metric) surface mount package, rated for 400mA continuous current.
✓ Total Stock: 157,340 pcs

HF50ACB322513-T Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
154,000 pcs
On Request
154000 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,705 pcs
On Request
1705 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
1,635 pcs
On Request
1635 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HF50ACB322513-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Length
Mounting Type
Number of Lines
Operating Temperature
SVHC Present
Width
View Similar Products (0)

HF50ACB322513-T Description

Short technical summary and product information.

The TDK HF50ACB322513-T is a single-line ferrite bead designed for signal line filtering applications. It provides 60 Ω impedance at 100 MHz with a maximum DC resistance of 300 mOhm and a current rating of 400 mA. The component is housed in a 1210 (3225 Metric) surface mount package with overall dimensions of 3.20 mm × 2.50 mm and a maximum height of 1.50 mm.



This ferrite bead operates over a temperature range of -40°C to +125°C, making it suitable for a wide variety of environments. The component is surface mountable and uses standard 1210 footprint, ideal for automated assembly processes.

HF50ACB322513-T Quick Information

Product Type: Ferrite Bead
Series: ACB
Canonical Name: TDK HF50ACB322513-T Ferrite Bead, 60 Ω @ 100 MHz, 1210 (3225 Metric), 400mA
Subcategory: Signal Line Ferrite Bead

HF50ACB322513-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HF50ACB322513-T Features

  • 60 Ω impedance at 100 MHz for noise suppression.
  • 400 mA maximum current rating.
  • 300 mOhm maximum DC resistance (DCR).
  • 1210 (3225 Metric) surface mount package.
  • Operating temperature range -40°C to 125°C.

HF50ACB322513-T Applications

  • Ideal for signal line EMI filtering in power circuits.
  • Suitable for high-frequency noise suppression on I/O lines.
  • Used in consumer electronics and industrial control modules.

HF50ACB322513-T FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the TDK HF50ACB322513-T ferrite bead?

The impedance is 60 Ω at 100 MHz.

What is the operating temperature range of this ferrite bead?

The operating temperature range is -40°C to 125°C.

What is the package size of the HF50ACB322513-T?

It is a 1210 (3225 Metric) surface mount package, 3.20 mm × 2.50 mm with a maximum height of 1.50 mm.

Is the TDK HF50ACB322513-T RoHS compliant?

It is listed as RoHS3 compliant (status unverified — low confidence).

What is the maximum DC resistance (DCR) of this ferrite bead?

The maximum DCR is 300 mOhm.

What is the maximum current rating of the HF50ACB322513-T?

The maximum current rating is 400 mA.
