| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Width |

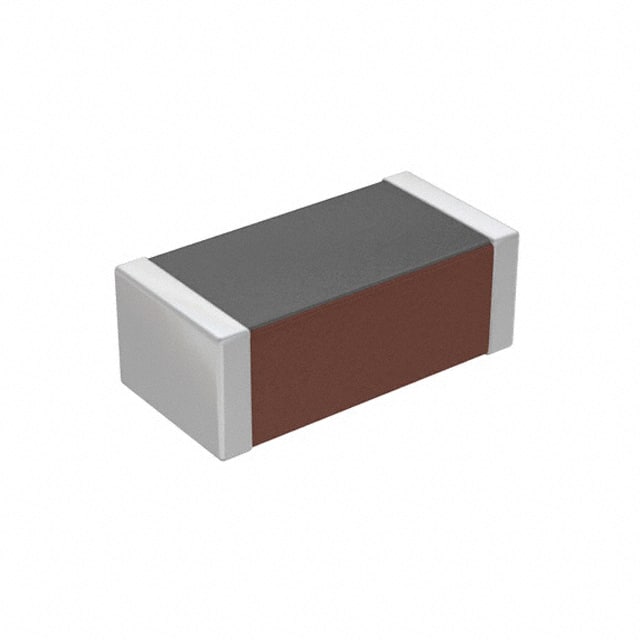

The HF50ACB321611-T is a single-line ferrite bead from TDK Corporation designed for signal line filtering applications. It offers a nominal impedance of 31 Ω at 100 MHz, with a maximum DC resistance of 200 mΩ and a maximum current rating of 500 mA.
This component is housed in a standard 1206 (3216 Metric) surface mount package measuring 3.20 mm x 1.60 mm with a maximum height of 1.30 mm. It operates over a temperature range of -40°C to 125°C, making it suitable for a wide variety of environments.
The ferrite bead is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is intended for use in noise suppression and EMI filtering on signal lines in electronic circuits.
The nominal impedance is 31 Ω at 100 MHz.
The maximum current rating is 500 mA.
The maximum DC resistance is 200 mΩ.
It comes in a 1206 (3216 Metric) surface mount package.
The operating temperature range is -40°C to 125°C.
Yes, it is listed as RoHS3 compliant.
