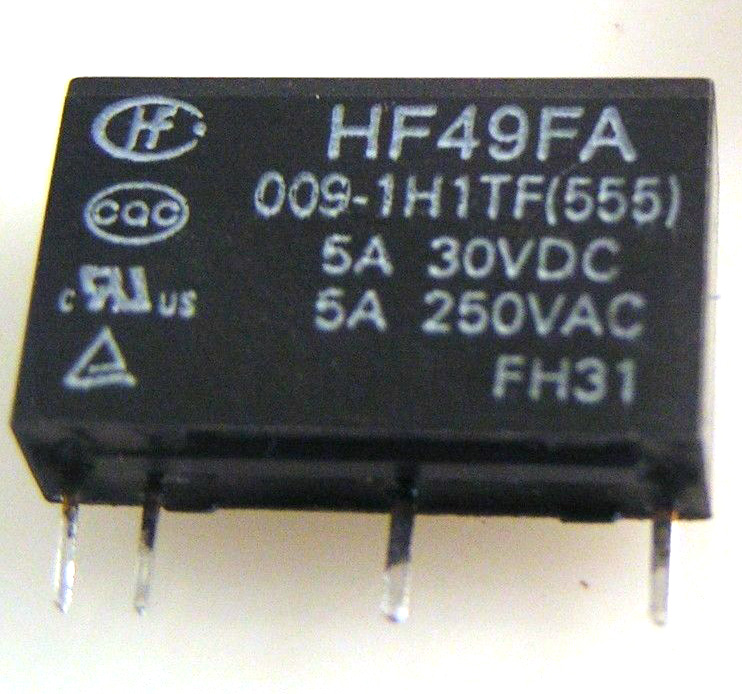

HF49FA This Hongfa HF49FA 009-1H1TF is a Single Pole Normally Open (SPNO) relay with a 9VDC coil. It features a switching capacity of 5A at 240VAC or 30VDC.
Mfr Part #:

HF49FA

Available from 1 distributors
Mfr Name: Hongfa
Hongfa
This Hongfa HF49FA 009-1H1TF is a Single Pole Normally Open (SPNO) relay with a 9VDC coil. It features a switching capacity of 5A at 240VAC or 30VDC.
✓ Total Stock: 12,000 pcs
$ Price Range: $2.00

HF49FA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HF49FA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Lead Spacing
Mounting Type
View Similar Products (0)

HF49FA Description

Short technical summary and product information.

The Hongfa HF49FA 009-1H1TF is a slim, through-hole mounted SPNO relay designed for power applications. It operates with a 9VDC coil, with a tested actuation range between 6 VDC and 15 VDC.



This relay can switch up to 5A at 240VAC or 30VDC. Its compact dimensions are 20mm x 12.5mm x 5mm, with 4mm lead spacing, making it suitable for PCB mounting.



Various approval stamps such as RU and CQC are mentioned, indicating compliance with certain standards. The part is described as being in pristine, 'as new' condition, stored in original packaging.

HF49FA Quick Information

Product Type: SPNO Relay
Series: HF49FA
Canonical Name: Hongfa HF49FA 009-1H1TF 9VDC Coil SPNO Relay
Subcategory: Power Relay

HF49FA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HF49FA Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

HF49FA Features

  • 9VDC coil operates between 6-15VDC
  • 5A switching current capacity
  • 240VAC and 30VDC switching
  • Single Pole Normally Open (SPNO)
  • Through-hole PCB mounting

HF49FA Applications

  • Used in home appliance control circuits.
  • Suitable for industrial automation switching.
  • Ideal for lighting and HVAC control.
  • Applicable for small motor control applications.

HF49FA FAQs

6 frequently asked questions generated from this part’s specifications.
What coil voltage does the HF49FA relay require?

The nominal coil voltage is 9 VDC, with an operating range of 6 to 15 VDC.

What are the maximum switching ratings?

The relay can switch loads up to 30 VDC at 5 A, or up to 240 VAC at 5 A.

What contact arrangement does the HF49FA have?

Single Pole Normally Open (SPNO).

What mounting type is the HF49FA designed for?

Through Hole (THT).

What are the HF49FA's dimensions?

20 mm x 12.5 mm x 5 mm.

What is the lead spacing of the HF49FA?

4 mm.
