| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Insulation | |
| Material | |
| Mounting Type | |
| Number of Poles | |
| Operating Voltage | |
| Switching Cycles |

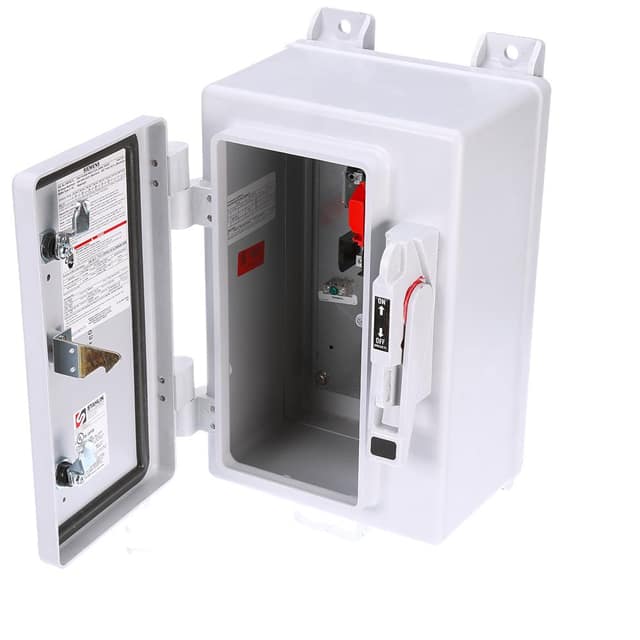

The Siemens HF322NX is a heavy duty safety switch designed for reliable circuit protection. This 3-pole switch operates at up to 240V and has an ampacity rating of 60A.
Constructed with a fiberglass reinforced polyester material, it features a robust Type 4X enclosure, making it suitable for demanding environmental conditions including industrial and corrosive resistance applications. The switch is designed for surface mounting and utilizes mechanical lugs for electrical connections.
With a mechanical service life of 10,000 switching cycles, the HF322NX is built for durability. Its suitability for operation as a disconnecting means for service entrances and loads underscores its critical role in electrical systems. The operating temperature range is from -29°C to 85°C.
240V
60A
3
Type 4X
-29°C to 85°C
10,000 cycles
Mechanical lugs
