Mfr Part #:

HF20G

Name: HF20G
Brand: Aavid, Thermal Division of Boyd Corporation
SKU: HF20G

Description:

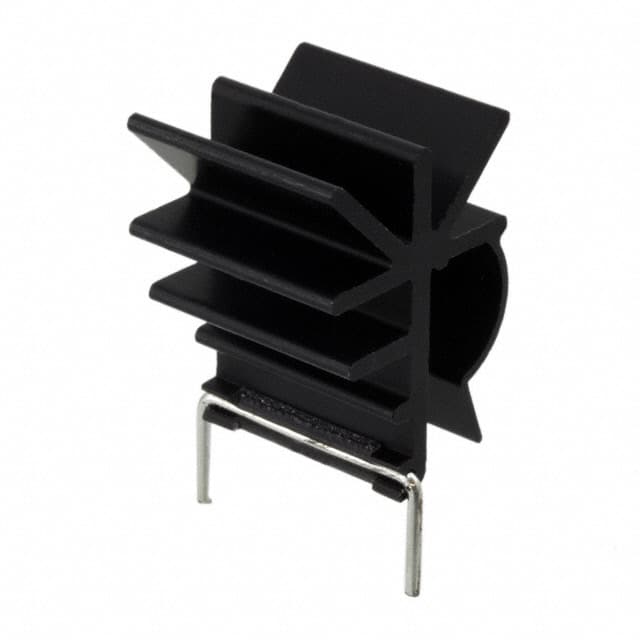

HEATSINK TO-220 TAB/CLIP-ON

Stock on Request

HF20G Description

Short technical summary and product information.

HEATSINK TO-220 TAB/CLIP-ON

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Heat Sinks
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Attachment Method	Clip and PC Pin
Fin Height	0.787" (19.99mm)
Length	0.790" (20.07mm)
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	1.0W @ 20°C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	6.00°C/W @ 400 LFM
Thermal Resistance @ Natural	13.10°C/W
Type	Board Level, Vertical
Width	1.102" (28.00mm)
