| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Contact Material | |
| Contact Resistance | |
| Country of Origin | |
| Failure Rate | |
| Height | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Terminal Type | |
| Width |

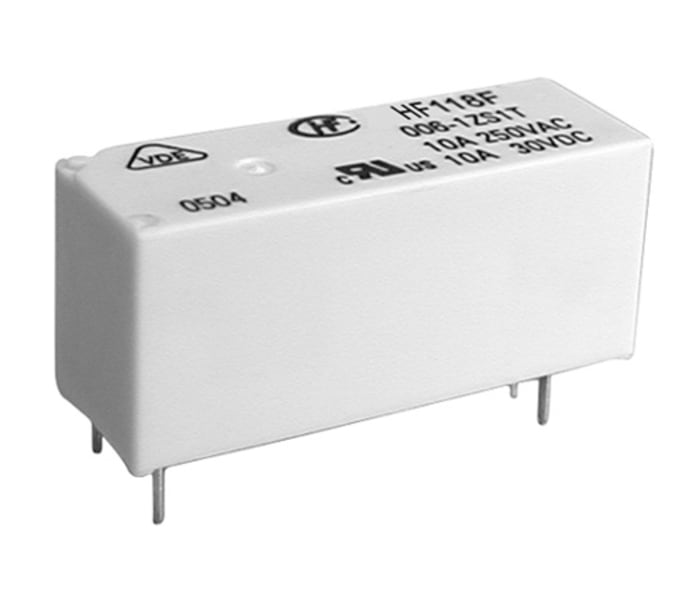

The Hongfa Europe GMBH HF118F/005-1HS5T(136) is a PCB Power Relay designed for various electrical applications. It operates with a 5V dc coil voltage and offers a switching current of 10A. The relay features a Single Pole Single Throw (SPST) contact configuration.
With a compact design, this relay has dimensions of 28.5mm in length, 12.5mm in height, and 10.1mm in width. It is suitable for PCB mounting and utilizes PCB pin terminals. The contact material is a Silver Alloy, providing a contact resistance of 100mΩ.
This power relay operates within a temperature range of -40°C to 85°C. It has a switching power rating of 2.5kVA and can handle switching DC voltages up to 125V dc and AC voltages up to 125V ac. The coil resistance is 113Ω, and the coil power consumption is 290mW.
Manufactured in China, this component adheres to RoHS standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 5V dc.
The maximum switching current is 10A.
It has an SPST contact configuration.
This relay is designed for PCB mounting.
The operating temperature range is from -40°C to 85°C.
The switching power rating is 2.5kVA.
The coil resistance is 113Ω.
