| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,220 pcs
|
14220 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Contact Material | |
| Contact Resistance | |
| Halogen Free | |
| Insulation Resistance | |
| Operate Time | |
| Release Time | |
| Temperature Rise |

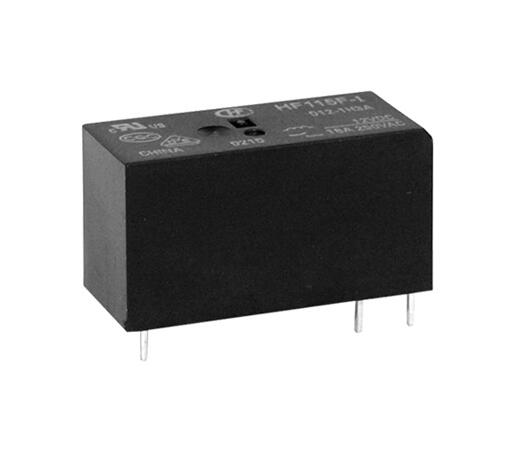

The HONGFA HF115F-I is a miniature high power relay suitable for various industrial applications. It features a contact rating of 16A at 250VAC and can handle inrush currents up to 120A for 20ms.
Key electrical characteristics include a 5kV dielectric strength between coil and contacts, and 1000VAC between open contacts. The relay operates with a coil power of approximately 400mW and offers various nominal coil voltages from 5VDC to 60VDC. The contact material is AgSnO2, ensuring reliable switching.
Designed for durability, the HF115F-I has an electrical endurance of up to 7.5 x 10^4 operations at 16A 250VAC and a mechanical endurance of 1 x 10^7 operations. It operates within an ambient temperature range of -40°C to 85°C and has a low profile with dimensions of 29.0mm x 12.7mm x 15.7mm.
This relay meets VDE 0700 and 0631 reinforce insulation standards and features a UL insulation system of Class F. It is available in plastic sealed and flux-proofed types, with sockets also available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum switching current for the HF115F-I relay is 16A.
The contact rating is 16A 250VAC at 85°C.
The dielectric strength between the coil and contacts is 5kV.
The operating ambient temperature range is -40°C to 85°C.
The UL insulation system is Class F.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
