| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

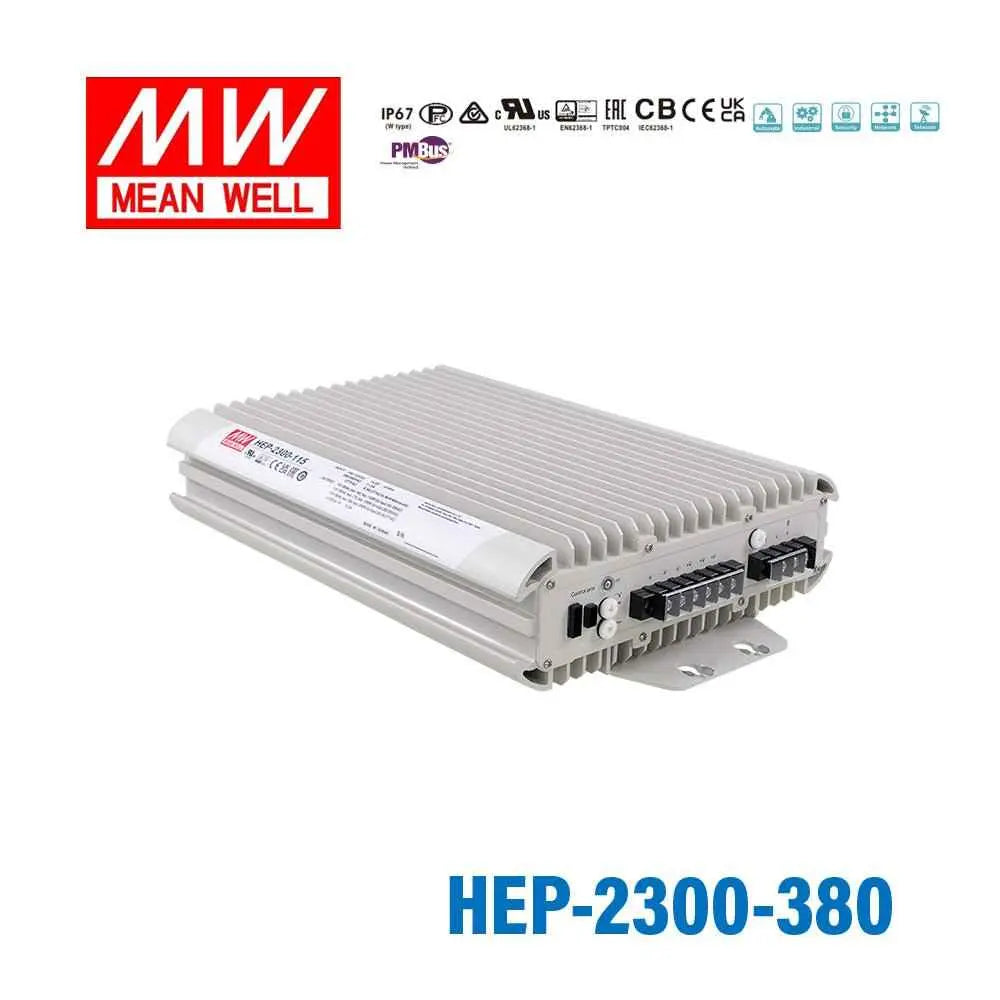

The Mean Well USA HEP-2300-380 is an enclosed AC DC converter designed for robust performance. It features a wide universal AC input range of 90V to 305VAC and can also accept DC input.
Key electrical specifications include a 380V output voltage, a rated current of 6.05A, and a substantial power rating of 2300W. The converter boasts high efficiency, up to 96%, and includes built-in active PFC functionality. It offers adjustable output voltage and current through an internal potentiometer.
Designed for demanding environments, the HEP-2300-380 has a fanless design for cooling by free air convection and operates across a wide temperature range of -40°C to +70°C. It is built with an aluminum case filled with heat-conducted glue and is waterproof rated to IP65. The unit can withstand 10G vibration tests and operates at altitudes up to 5000 meters.
Protections include short circuit, over current, over voltage, and over temperature. It is compliant with standard 62368-1 and holds approvals from CB, CE, cURus, EAC, TUV, and UKCA. Mounting is via chassis mount.
The output voltage is 380V.
The rated current is 6.05A.
The power rating is 2300W.
The input voltage range is 90V to 305VAC.
The operating temperature range is -40°C to +70°C.
The waterproof rating is IP65.
The approval agencies are CB, CE, cURus, EAC, TUV, and UKCA.
