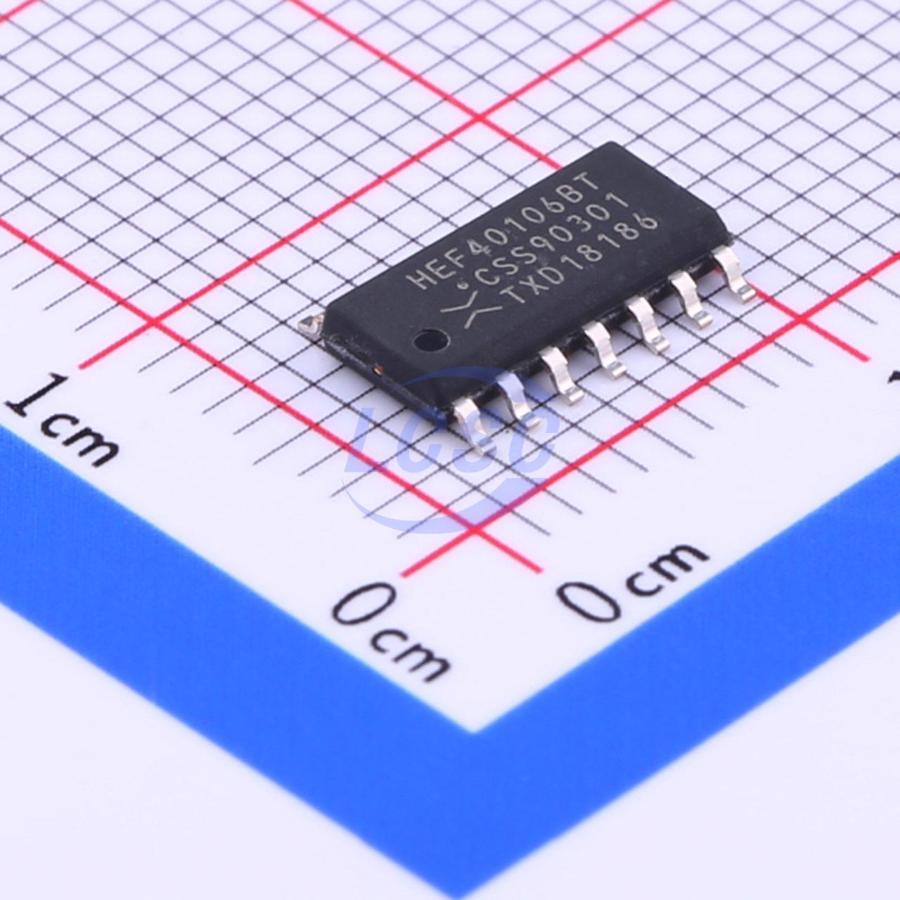

HEF40106BT The HEF40106BT from NXP Semiconductors is a Hex Inverting Schmitt Trigger logic gate. It offers enhanced noise immunity and waveform shaping capabilities.
Mfr Part #:

HEF40106BT

Available from 1 distributors
Mfr Name: NA
NA
The HEF40106BT from NXP Semiconductors is a Hex Inverting Schmitt Trigger logic gate. It offers enhanced noise immunity and waveform shaping capabilities.
✓ Total Stock: 69 pcs
$ Price Range: $0.22

HEF40106BT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
69 pcs
On Request
69 pcs On Request 1 On Request On Request 03+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HEF40106BT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Propagation Delay
View Similar Products (0)

HEF40106BT Description

Short technical summary and product information.

The HEF40106BT is a Hex Inverting Schmitt Trigger integrated circuit manufactured by NXP Semiconductors. Each circuit functions as an inverter with Schmitt-trigger action, meaning it switches at different points for positive-going and negative-going input signals. This hysteresis allows the device to be used for enhanced noise immunity or to "square up" slowly changing waveforms.



Key electrical characteristics include hysteresis voltage, which varies with supply voltage (VDD), and propagation delays for both high-to-low and low-to-high transitions. These delays are specified at various VDD levels and with a typical load capacitance of 50 pF.



The HEF40106BT is available in a 14-SOIC package, suitable for surface mounting. Its design makes it useful in applications requiring reliable signal conditioning and noise reduction.

HEF40106BT Quick Information

Product Type: Logic Gate
Series: HEF40106B
Canonical Name: HEF40106B Hex Inverting Schmitt Trigger Gate
Subcategory: Schmitt Trigger

HEF40106BT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HEF40106BT Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

HEF40106BT Features

  • Hex Inverting Schmitt Trigger functionality
  • Enhanced noise immunity
  • Waveform squaring capability
  • Specified hysteresis voltage
  • Defined propagation delays

HEF40106BT Applications

  • Signal conditioning for noisy digital environments.
  • Waveform shaping in oscillator circuit designs.
  • Pulse width modulation filtering applications.
  • Noise immunity enhancement for microcontroller inputs.
  • Level shifting between different logic families.

HEF40106BT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the package type for the HEF40106BT?

The HEF40106BT is available in a 14-SOIC surface mount package.

What are the typical hysteresis voltage values?

Hysteresis voltage ranges from 0.5 V to 1.8 V depending on the supply voltage conditions.

How fast is the propagation delay?

Propagation delays range from 30 ns to 180 ns under varying supply voltages and load conditions.

What is the maximum output transition time?

Output transition times reach up to 120 ns for both high-to-low and low-to-high transitions at 5 V supply.

How does dynamic power dissipation change with voltage?

Dynamic power dissipation increases significantly with higher supply voltages, reaching up to 20,000 μW at 15 V.
