| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

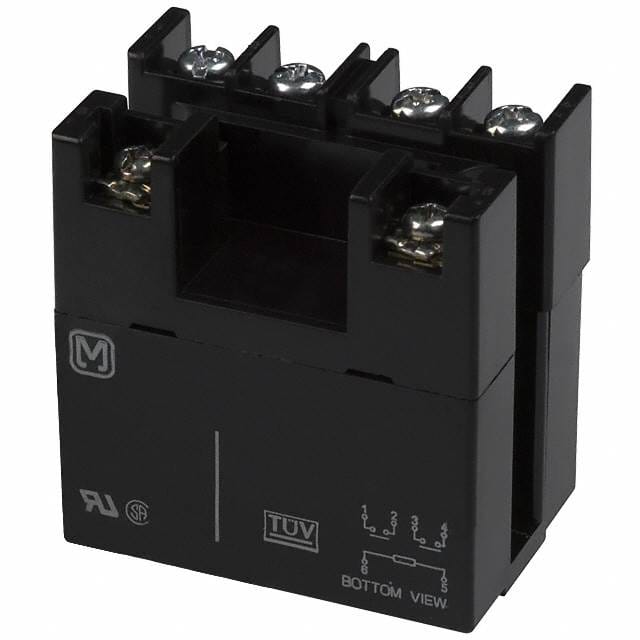

This Panasonic HE2AN-S-DC48V is a general purpose relay designed for power applications. It offers a robust 25A contact rating and operates with a 48VDC coil.
The relay features a DPST-NO (2 Form A) contact configuration, suitable for switching various loads. It is designed for chassis mounting and utilizes screw terminals for secure connections.
Key electrical specifications include a coil current of 40 mA, a must operate voltage of 33.6 VDC, and a must release voltage of 4.8 VDC. The operate time is 30 ms, and the release time is 10 ms.
With an operating temperature range of -50°C to 55°C, this relay is built for demanding environments. The contact material is Silver Tin Oxide (AgSnO), ensuring reliable performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 48VDC.
The contact rating is 25A.
It has a DPST-NO (2 Form A) contact form.
The operating temperature range is -50°C to 55°C.
It is a chassis mount relay.
