| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

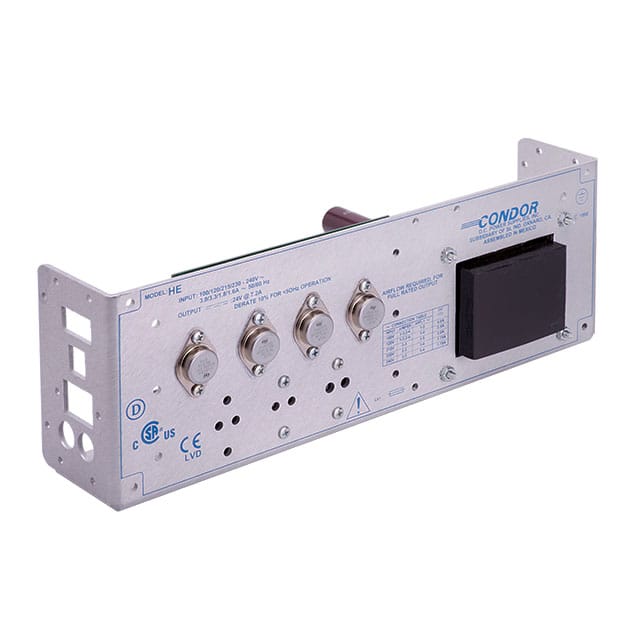

This HE28-6-A+G AC/DC converter from SL Power Electronics is a linear power supply designed for commercial ITE applications. It accepts a universal input voltage range of 100 to 240 VAC and provides a stable 28VDC output at up to 6A, with a total power capacity of 168W.
The converter features adjustable output, remote sensing, and automatic current limit/foldback for protection. It operates within a temperature range of 0°C to 70°C with derating and offers a voltage isolation of 3 kV. The unit is designed for chassis mounting, making it suitable for integration into various systems.
Compliance includes RoHS3 status and a Moisture Sensitivity Level of 1. The MTBF is rated at over 200,000 hours per MIL-HDBK-217D, indicating high reliability for demanding applications.
100 to 240 VAC.
28 VDC at 6 A.
0°C to 50°C full rated, derated linearly to 40% at 70°C.
Chassis mount.
Yes, automatic current limit/foldback.
3 kV.
60% at full load.
