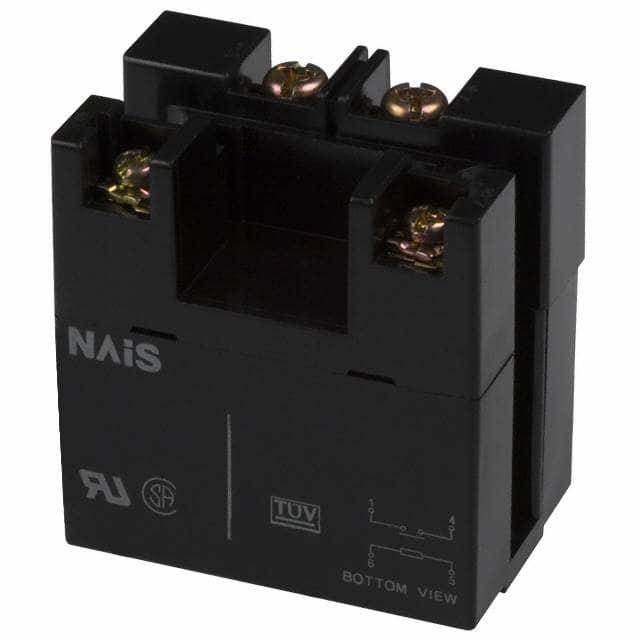

HE1AN-S-AC12V The Panasonic HE1AN-S-AC12V is a general purpose power relay with a 30A switching capacity and a 12VAC coil. It features a 1 Form A (SPST-NO) contact arrangement and screw terminals.
Mfr Part #:

HE1AN-S-AC12V

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic HE1AN-S-AC12V is a general purpose power relay with a 30A switching capacity and a 12VAC coil. It features a 1 Form A (SPST-NO) contact arrangement and screw terminals.
✓ Total Stock: 100,000 pcs
$ Price Range: $2.00

HE1AN-S-AC12V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HE1AN-S-AC12V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Mounting Type
Must Operate Voltage
Must Release Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Switching Voltage
Termination Style
Weight
View Similar Products (0)

HE1AN-S-AC12V Description

Short technical summary and product information.

The Panasonic HE1AN-S-AC12V is a general purpose power relay designed for high-capacity switching applications. It features a 1 Form A (SPST-NO) contact arrangement with a robust 30A switching current rating at 277VAC and 30VDC.



The relay operates with a 12VAC coil, requiring a must-operate voltage of 8.4VAC and a must-release voltage of 1.8VAC. It offers a fast operate and release time of 30ms each. The component is built for durability, with a mechanical life of 10 million operations and an electrical life of 100,000 operations under specified loads.



Designed for demanding environments, the HE1AN-S-AC12V operates within a temperature range of -50°C to 55°C. It boasts high dielectric strength, with 5,000 Vrms between contacts and coil, and 2,000 Vrms between open contacts. The surge voltage capability between coil and contact is a significant 10,000V.



This relay is suitable for chassis mounting and features convenient screw terminals for secure connections. Its specifications make it ideal for various industrial and home appliance applications requiring reliable high-current switching.

HE1AN-S-AC12V Quick Information

Product Type: Power Relay
Canonical Name: Panasonic HE1AN-S-AC12V General Purpose Power Relay
Subcategory: General Purpose Relay

HE1AN-S-AC12V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HE1AN-S-AC12V Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

HE1AN-S-AC12V Features

  • 30A contact rating for high-current switching.
  • 12VAC coil voltage for AC control circuits.
  • SPST-NO (1 Form A) contact arrangement.
  • Screw terminal for secure connections.
  • Wide operating temperature range of -50°C to 55°C.

HE1AN-S-AC12V Applications

  • Suitable for home appliance control.
  • Used in office equipment systems.
  • Ideal for industrial automation tasks.
  • Reliable for power switching circuits.

HE1AN-S-AC12V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the contact rating of the HE1AN-S-AC12V relay?

The HE1AN-S-AC12V relay has a contact rating of 30 A.

What is the coil voltage for the HE1AN-S-AC12V relay?

The coil voltage for the HE1AN-S-AC12V relay is 12VAC.

What type of contact form does the HE1AN-S-AC12V relay have?

The HE1AN-S-AC12V relay has a 1 Form A (SPST-NO) contact form.

What is the operating temperature range for the HE1AN-S-AC12V relay?

The operating temperature range for the HE1AN-S-AC12V relay is -50°C to 55°C.

What is the surge voltage rating between the coil and contacts?

The surge voltage rating between the coil and contacts is 10,000 V.

What is the mechanical life expectancy of this relay?

The mechanical life expectancy of this relay is 10,000,000 operations.

What is the maximum switching voltage for this relay?

The maximum switching voltage for this relay is 277VAC, 30VDC.
