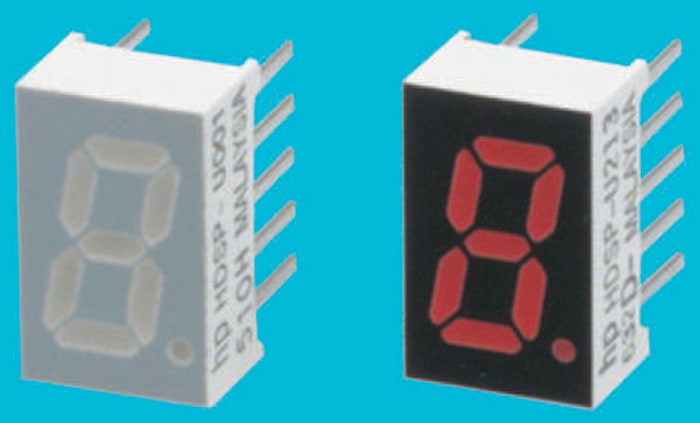

HDSP-U203 The Avago Technologies HDSP-U203 is a single-digit, 7-segment red LED display. It features a character height of 8mm and a right-side decimal orientation.
Mfr Part #:

HDSP-U203

Available from 1 distributors
Mfr Name: Avago Technologies
Avago Technologies
The Avago Technologies HDSP-U203 is a single-digit, 7-segment red LED display. It features a character height of 8mm and a right-side decimal orientation.
✓ Total Stock: 225 pcs
$ Price Range: $0.99

HDSP-U203 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
225 pcs
On Request
225 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HDSP-U203 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Brand
Display Type
Forward Current
Forward Voltage
Industrial Grade
Medical Grade
Military Grade
Number of Characters
Product Type
Storage Temperature
Tape & Reel
View Similar Products (0)

HDSP-U203 Description

Short technical summary and product information.

This HDSP-U203 from Avago Technologies is a red 7-segment LED display with a single character. It operates with a forward voltage of 2V and a forward current of 30mA, emitting light with a dominant wavelength of 626nm. The display has a character height of 8mm and a character width of 4mm, with a luminous intensity of 5.4mcd.



Designed for through-hole mounting, this component has external dimensions of 7.1mm width, 5mm depth, and 11mm height. It is suitable for operation within a temperature range of -25°C to 90°C. The common connection is cathode, and it features a right-side decimal point orientation.



This LED display is part of a range of single-digit 7-segment displays from Broadcom (Avago Technologies), offering various character heights and decimal point formats. It is compliant with RoHS3 standards.

HDSP-U203 Quick Information

Product Type: 7 Segment LED Display
Canonical Name: HDSP-U203 7 Segment LED Display
Subcategory: 7 Segment LED Display

HDSP-U203 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HDSP-U203 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

HDSP-U203 Features

  • Single-digit 7-segment red LED display.
  • 8mm character height, 4mm character width.
  • Right-side decimal point orientation.
  • Through-hole mount type.
  • Operating temperature range -25°C to 90°C.

HDSP-U203 Applications

  • Ideal for general numeric displays.
  • Suitable for status indicators.
  • Used in control panel readouts.
  • Component for embedded systems.

HDSP-U203 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the LED color of the HDSP-U203?

The LED color is Red.

How many segments does the HDSP-U203 display have?

The display has 7 segments.

What is the character height of the HDSP-U203?

The character height is 8mm.

What is the forward voltage for the HDSP-U203?

The forward voltage is 2V.

What is the forward current for the HDSP-U203?

The forward current is 30mA.

What is the operating temperature range for this LED display?

The operating temperature range is -25°C to 90°C.
