| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
128 pcs
|
128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Lead Style | |
| Number of Characters |

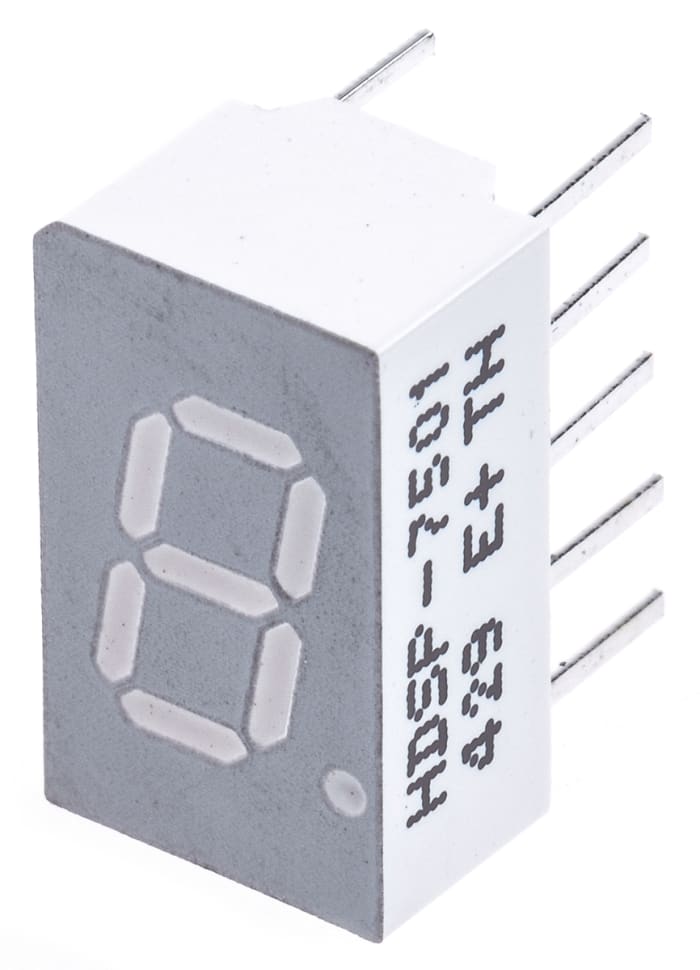

The Avago Technologies HDSP-7501 is a red 7-segment LED display designed for clear visual indication. This single-digit display offers a character height of 7.6mm and a character width of 4.2mm, with a dominant wavelength of 626nm.
Key electrical characteristics include a typical forward voltage of 2V and a forward current of 30mA, producing a luminous intensity of 5.4mcd. The display has a grey face color and a right-side decimal orientation.
Designed for through-hole mounting, the HDSP-7501 has external dimensions of 12.7mm in height, 7.6mm in width, and 9.9mm in depth. It operates within a temperature range of -40°C to 100°C.
This component is suitable for various applications requiring simple numeric or character displays, such as industrial control panels, measurement equipment, and status indicators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The forward voltage is 2 V.
Through hole.
-40°C to 100°C.
5.4 mcd.
626 nm.
7.6 mm.
Anode.
