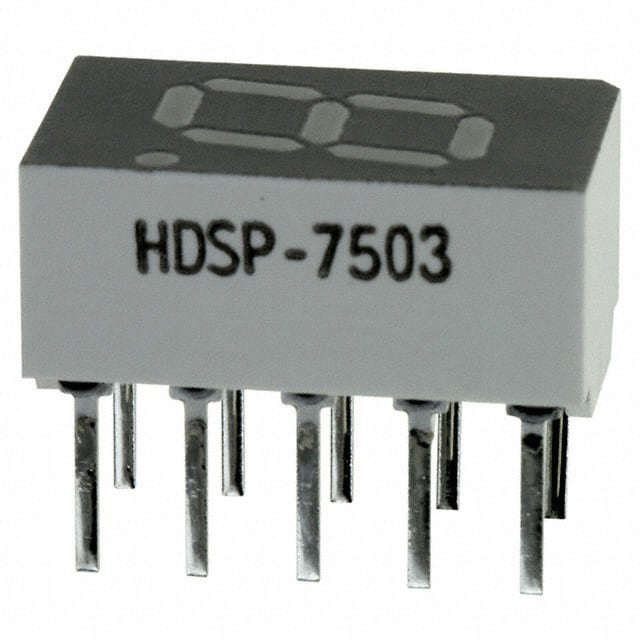

The Broadcom HDSP-7503 is a 7-segment LED display designed for clear readability at viewing distances up to 3 meters. This single-digit display features a 0.3-inch character height and a vibrant red color, making it suitable for various indicator applications.
With a typical forward voltage of 2V and a forward current of 20mA, the HDSP-7503 offers a luminous intensity of 5.39mcd. It is housed in a standard 10-DIP package with through-hole mounting. The display is designed for common cathode operation and provides excellent segment illumination for optimal contrast.
This component is ideal for applications requiring simple numeric or character display. Its industry-standard pinout and compact size facilitate easy integration into electronic designs. The high light output and excellent appearance ensure reliable performance in diverse environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HDSP-7503 is a 7-segment LED display in red.
The character height for the HDSP-7503 display is 0.30 inches (7.62mm).
The typical forward voltage is 2V and the typical forward current is 20mA.
The typical luminous intensity of the HDSP-7503 display is 5.39mcd.
The HDSP-7503 comes in a 10-DIP (0.200", 5.08mm) package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
