| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Common Pin | |
| Current | |
| Digit | |
| Display Type | |
| Lead Spacing | |
| Millicandela Rating | |
| Mounting Type | |
| Number of Characters | |
| Power Dissipation (Max) | |
| Viewing Angle | |
| Viewing Distance | |
| Voltage | |
| Wavelength |

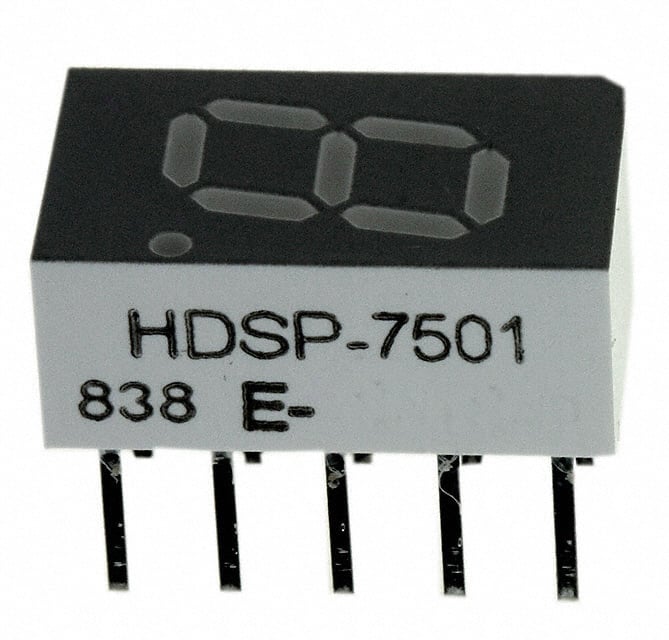

The Broadcom Limited HDSP-7501 is a 7.6 mm (0.3 inch) LED seven-segment display designed for viewing distances up to 3 meters. This single-digit display features a red color with a wavelength of 635nm and a luminous intensity of 5.39mcd. It operates with a forward voltage of 2V and a maximum power dissipation of 105mW, requiring a forward current of 20mA.
The device utilizes a standard 10-DIP (0.200", 5.08mm) package with through-hole mounting. It has a common anode configuration and offers excellent appearance with evenly lighted segments and mitered corners. The display provides a ±50° viewing angle, making it suitable for various applications where clear numeric indication is required.
This display is ideal for most applications and offers design flexibility with its common anode setup and right-hand decimal point capability. Its compact package and industry-standard pinout facilitate easy integration into electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The display size is 0.3 inch (7.62mm).
The display is red.
The forward voltage is 2V.
The luminous intensity is 5.39 mcd.
It is in a 10-DIP (0.200", 5.08mm) package.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
