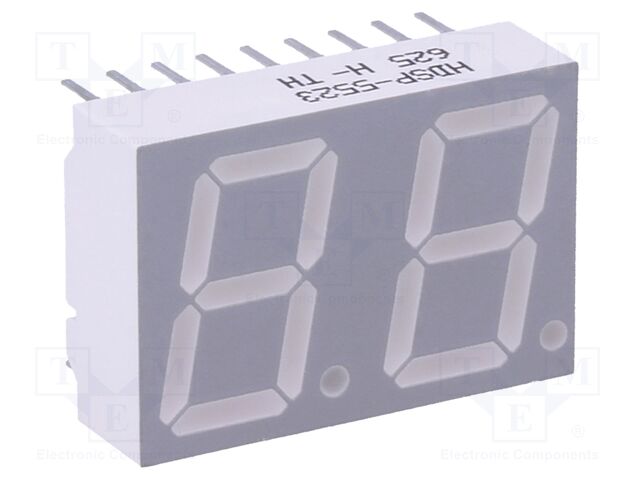

This HDSP-5523 LED display module from Broadcom (Avago) offers a clear, red 7-segment display with two characters. Each digit measures 14.22mm (0.56 inches) in height, making it suitable for various readouts.
The display operates with a typical current of 20mA and a voltage range of 2.1V to 2.5V. Its luminosity is rated between 0.9 and 2.8 millicandelas, ensuring good visibility. The common cathode configuration simplifies integration into electronic circuits.
Designed for through-hole (THT) mounting, the HDSP-5523 has dimensions of 25.146x17.02x8mm. It is packaged in a tube containing 20 pieces, ideal for production environments. The display's wavelength is 626nm, contributing to its distinct red color.
This component is suitable for applications requiring numeric or character displays, such as industrial control panels, measurement equipment, and status indicators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical operating voltage range is 2.1 to 2.5V.
It is packaged in a tube containing 20 pieces.
The digit height is 14.22mm (0.56 inches).
The display color is red.
It uses a common cathode configuration.
It uses through-hole (THT) mounting.
The typical luminosity is 0.9 to 2.8 millicandelas.
