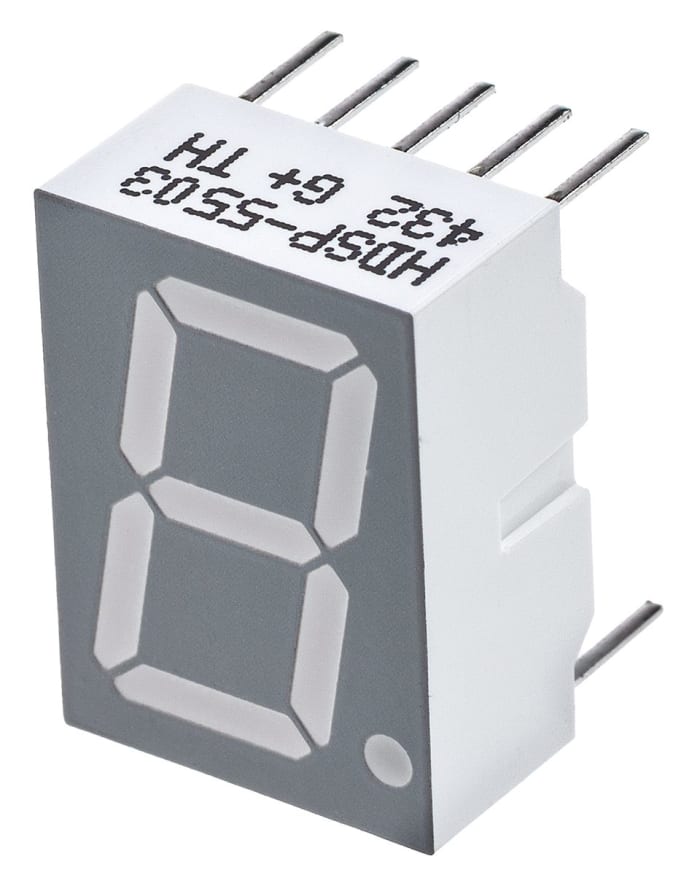

HDSP-5503 The Avago Technologies HDSP-5503 is a single-digit, 7-segment LED display in red. It features a character height of 14.2mm and through-hole mounting.
Mfr Part #:

HDSP-5503

Available from 2 distributors
Mfr Name: Avago Technologies
Avago Technologies
The Avago Technologies HDSP-5503 is a single-digit, 7-segment LED display in red. It features a character height of 14.2mm and through-hole mounting.
✓ Total Stock: 145 pcs
$ Price Range: $0.99

HDSP-5503 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
65 pcs
On Request
65 pcs On Request 1 On Request On Request 623 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HDSP-5503 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Display Type
Forward Current
Forward Voltage
Number of Characters
Product Type
View Similar Products (0)

HDSP-5503 Description

Short technical summary and product information.

This Avago Technologies HDSP-5503 is a red 7-segment LED display designed for various electronic applications. It offers a character height of 14.2mm and a character width of 7.8mm, with a common cathode connection.



The display operates with a forward voltage of 2.1V and a forward current of 90mA, providing a luminous intensity of 3.7mcd. The dominant wavelength for the red LED is 626nm. It is designed for through-hole mounting and has external dimensions of 12.6mm width, 17mm height, and 8mm depth.



Operating within a temperature range of -40°C to 100°C, this LED display is suitable for a wide array of environmental conditions. The face of the display is grey, and it includes a right-side decimal point orientation.

HDSP-5503 Quick Information

Product Type: 7 Segment LED Display
Canonical Name: Avago Technologies HDSP-5503 7 Segment LED Display
Subcategory: 7 Segment

HDSP-5503 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HDSP-5503 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

HDSP-5503 Features

  • Single-digit 7-segment red LED display.
  • 14.2mm character height for clear visibility.
  • Through-hole mounting for secure connections.
  • 3.7mcd luminous intensity at 626nm wavelength.
  • Operates from -40°C to 100°C.

HDSP-5503 Applications

  • Ideal for status indicators.
  • Suitable for numeric displays.
  • Used in control panels.
  • Applicable in test equipment.

HDSP-5503 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the LED color of the HDSP-5503?

The LED color is Red.

What is the character height of the HDSP-5503 display?

The character height is 14.2mm.

What is the operating temperature range for the HDSP-5503?

The operating temperature range is -40°C to 100°C.

What is the forward voltage of the HDSP-5503?

The forward voltage is 2.1V.

What is the luminous intensity of the HDSP-5503?

The luminous intensity is 3.7mcd.
