| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Common Pin | |
| Current | |
| Digit | |
| Display Type | |
| Lead Spacing | |
| Millicandela Rating | |
| Number of Characters | |
| Power Dissipation (Max) | |
| Voltage | |
| Wavelength |

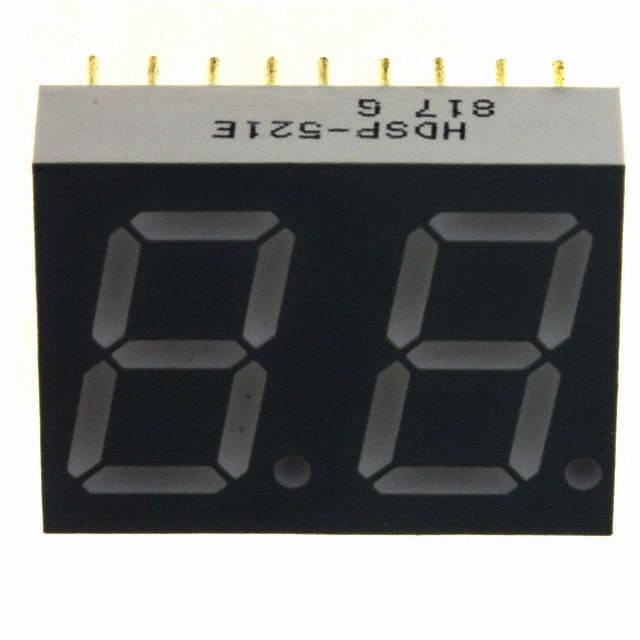

The Broadcom Limited HDSP-521E is a 7-segment, dual-digit display module designed for clear visual indication. This component features a vibrant red color and a digit height of 0.56 inches, making it suitable for various readouts.
With a common anode configuration and a standard 18-DIP package, the HDSP-521E offers straightforward integration into electronic designs. It operates with a typical forward voltage of 2.05V and a typical current of 20mA, with a maximum power dissipation of 62.5mW. The module's dimensions are 0.732" H x 0.984" W x 0.315" D.
This display module is ideal for applications requiring numerical or character displays, such as industrial control panels, measurement equipment, and status indicators. Its reliable performance and clear readability make it a practical choice for embedded systems and product front panels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The HDSP-521E is a 7-Segment display type.
The digit height is 0.56 inches.
The typical forward voltage is 2.05V.
The package type is 18-DIP (0.600", 15.24mm).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
